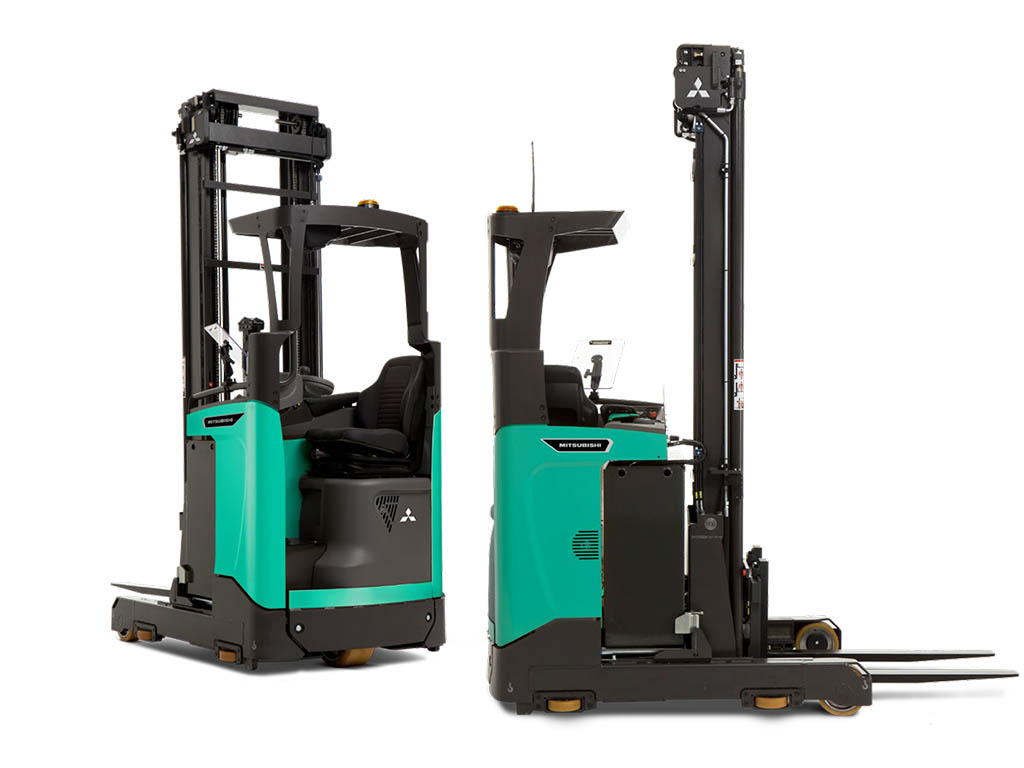

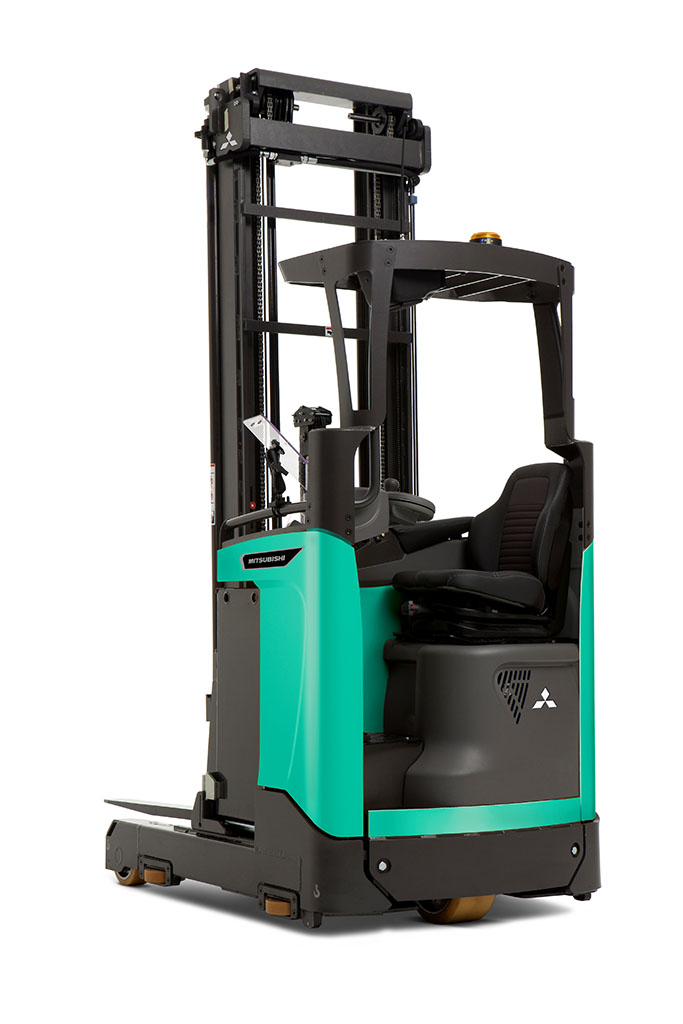

Incredibly nimble, the RB12-14N3(L)(C) series offers high productivity and exceptional value in a light reach truck. An impressive achievement in a truck this size, it strikes the perfect balance between cutting-edge features and low total cost of operation.

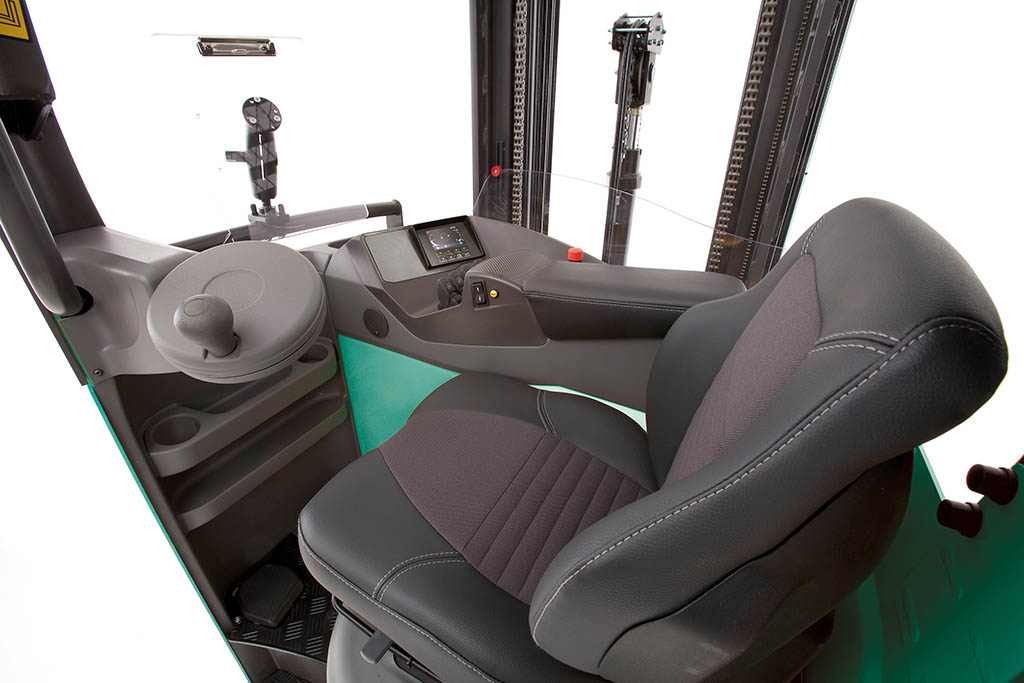

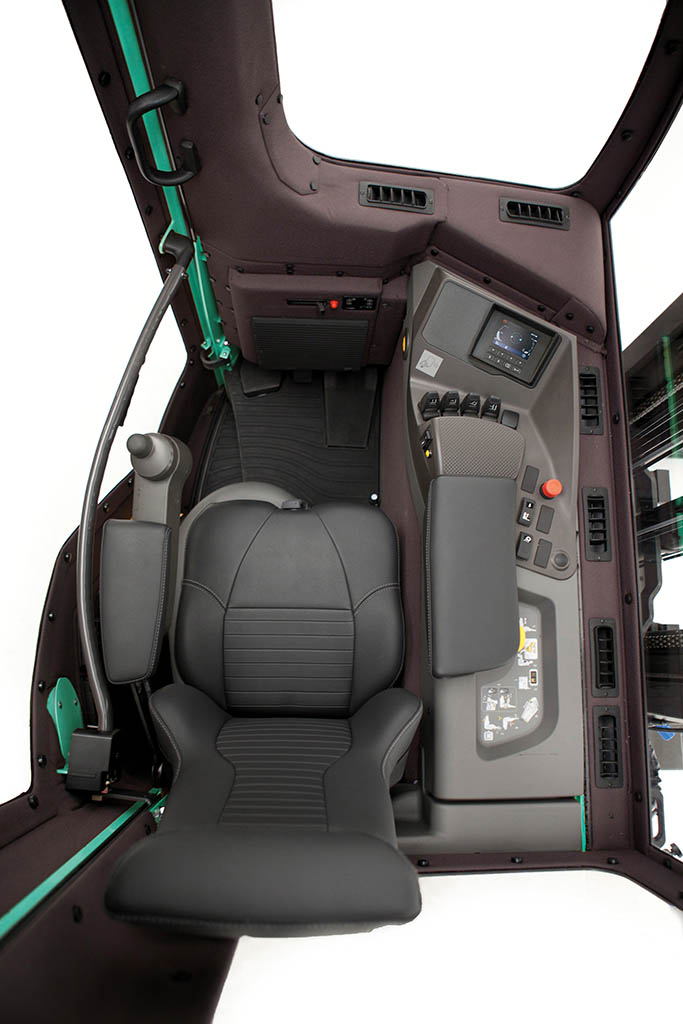

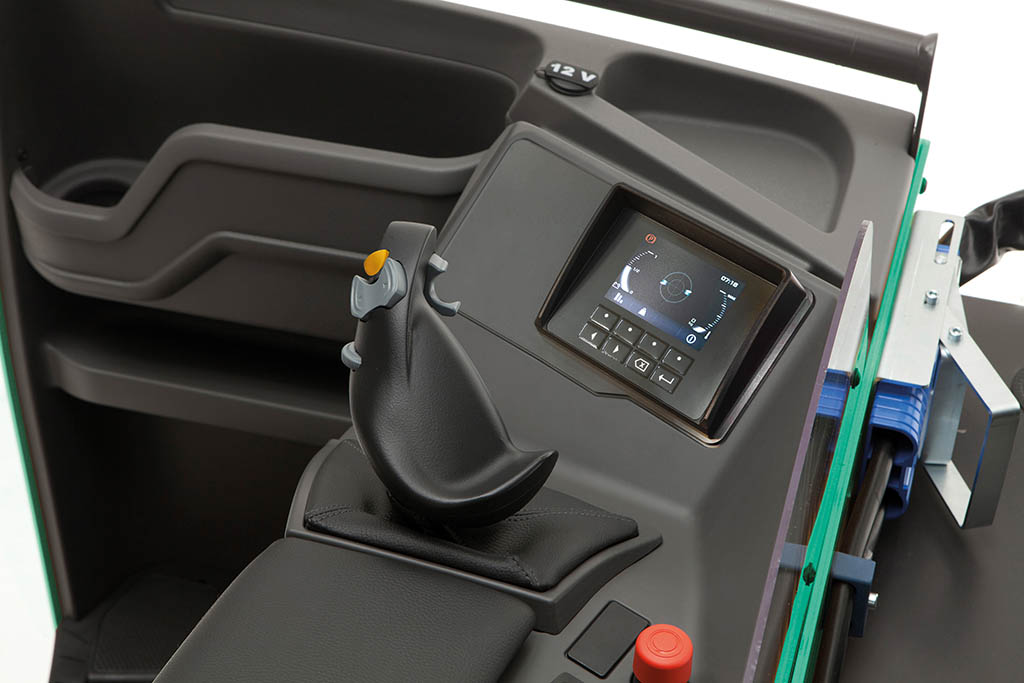

And with a host of exceptional ergonomic features, it's sure to be a favourite of operators. Adjustable seating, and a choice of adjustable controls make driving feel natural and incredibly intuitive for operators of all sizes.

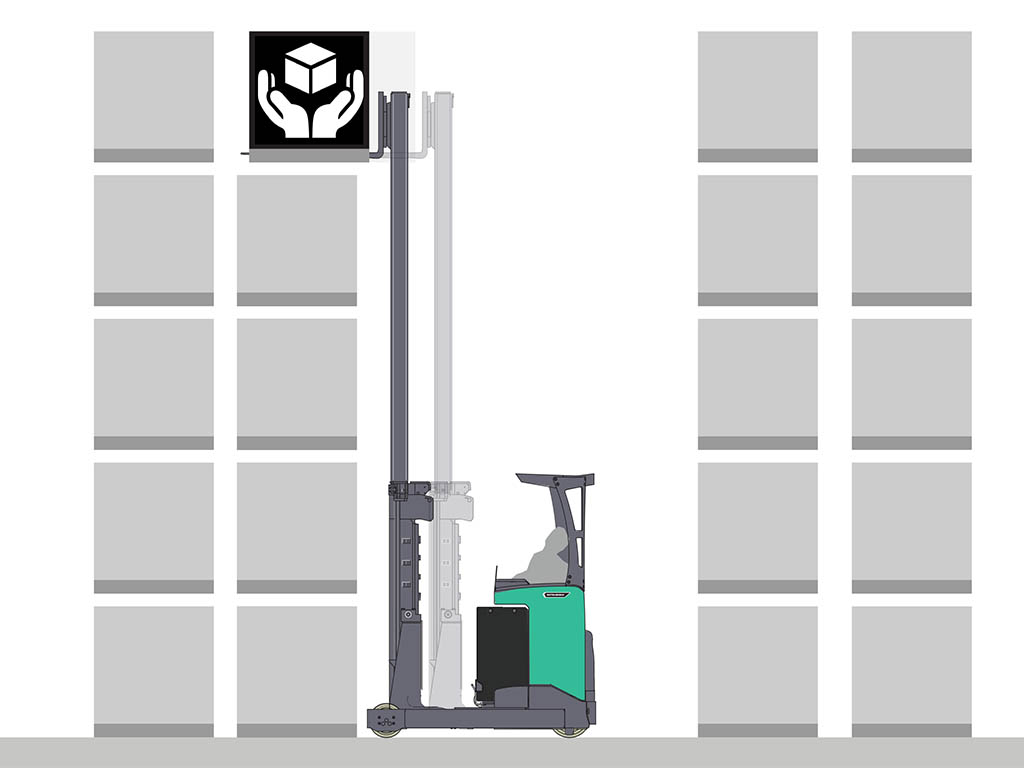

Specially designed for drive-in racking applications. the RB14N3C model keeps the same compact chassis and performance, yet lifts to even greater heights.
| Model | Load Capacity |
|---|---|
| RB12N3L | 1200 kg |
| RB14N3C | 1400 kg |
| RB14N3L | 1400 kg |
With its small size, the RB12-14N3(L)(C) series is right at home in narrow aisles. The RB12N3L and RB14N3L are ideal for block stacking, while the RB14N3C is designed for drive-in racking.
The truck senses the angle of a turn and reduces speed early. This makes for much safer handling with maximum stability and accurate, positive cornering.
Hydraulic functions such as mast reach and mast tilt are automatically optimised along with a reach damping function to make pallet placement and retrieval safer and quicker.
Using a finely tuned algorithm, the truck adjusts reach, tilt and sideshift speed automatically to greatly improve productivity and handling speed and work how the operator wants to work.

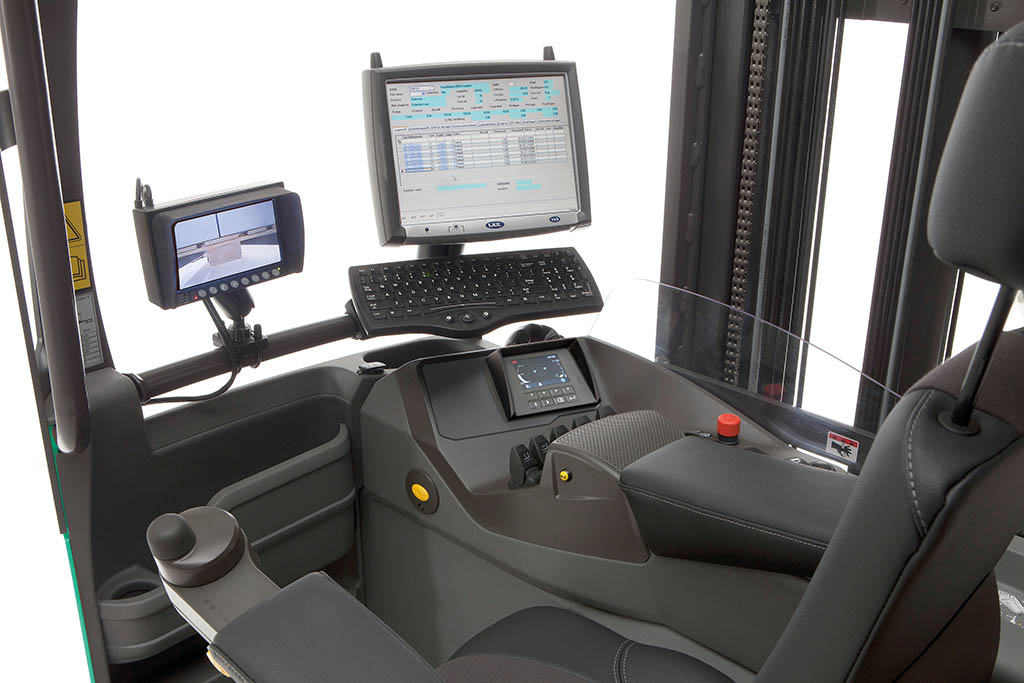

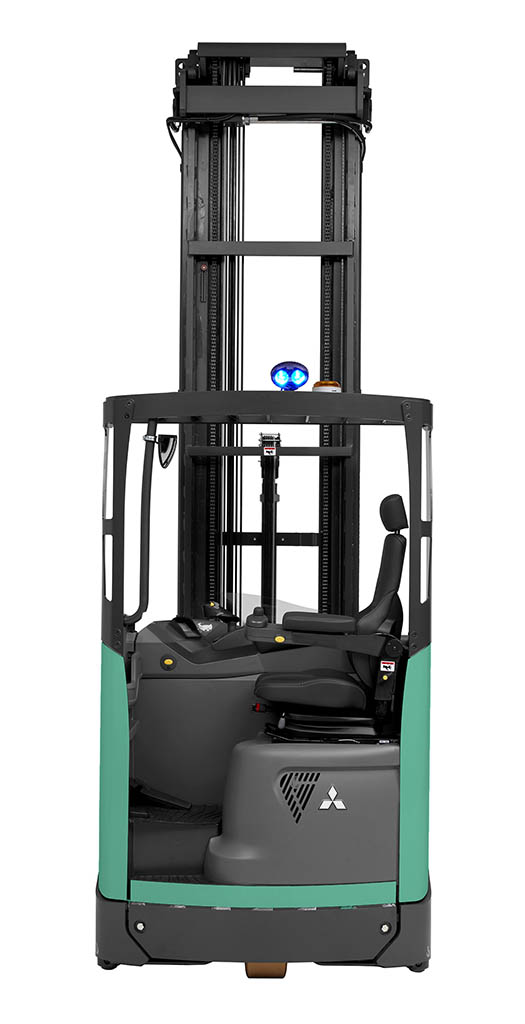

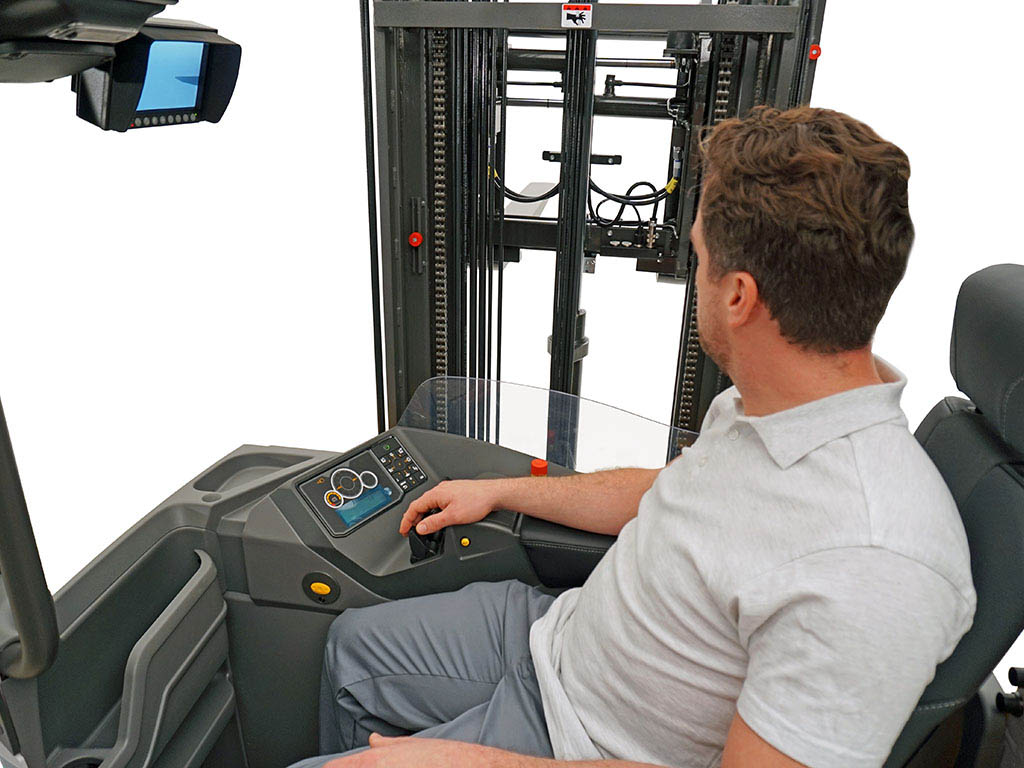

The mast and cabin have been fully optimised to give the operator the widest all-around view possible. This increases driver confidence, safety and productivity.

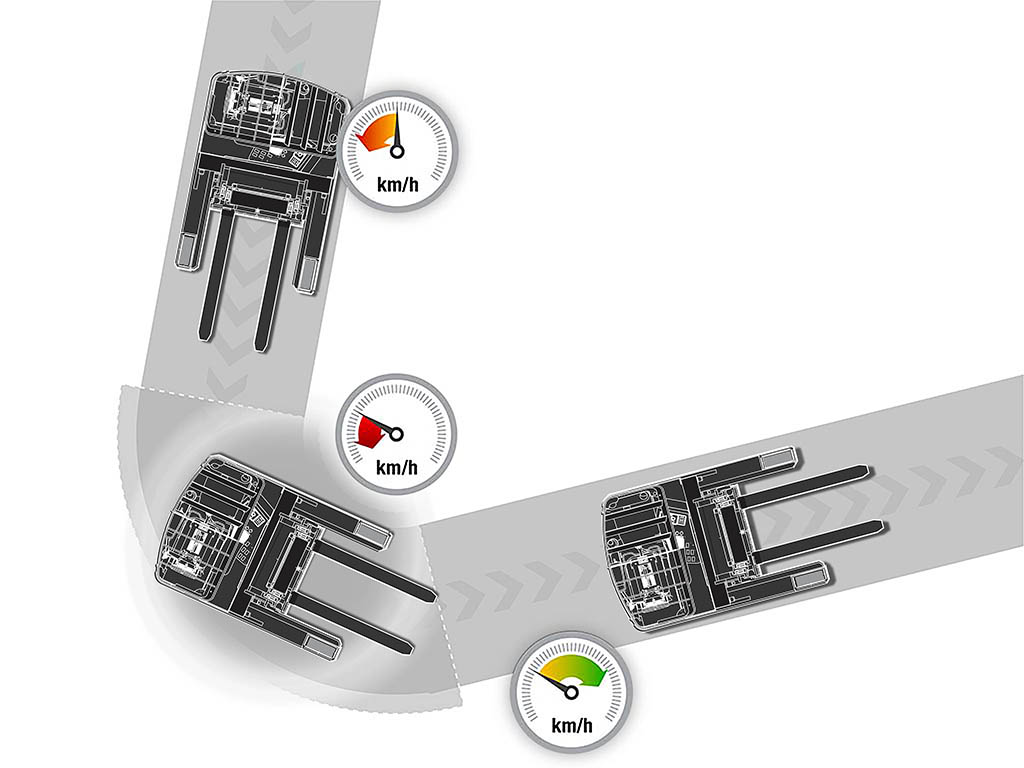

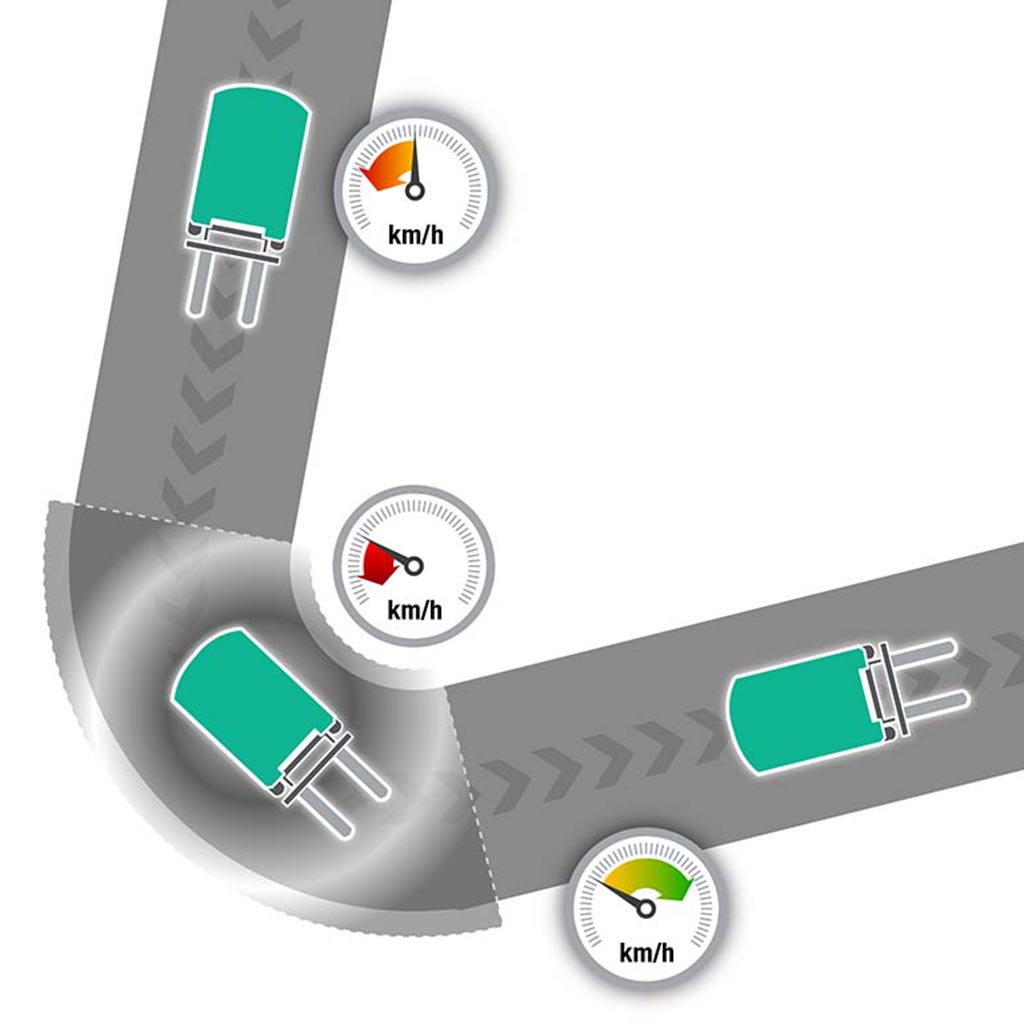

Intelligent Cornering System
The truck senses the angle of a turn and reduces speed early for maximum stability and accurate, positive cornering.
360-degree steering (option)
The operator can keep the truck in constant motion - saving seconds on every turn.
Stability Support System (S3)
Hydraulic functions such as mast reach and mast tilt are automatically optimised along with a reach damping function to make pallet placement and retrieval safer and quicker.
Level Assistance System
Automatically detects the operator's intention and automatically stops when the forks are at precisely the right level. (N3C model option only)
Mast Tilt Control (MTC)
The automatic damping function absorbs unwanted mast movements, reduces the speeds of tilt, side shift and angle, and ensures 80 percent faster mast stabilisation.

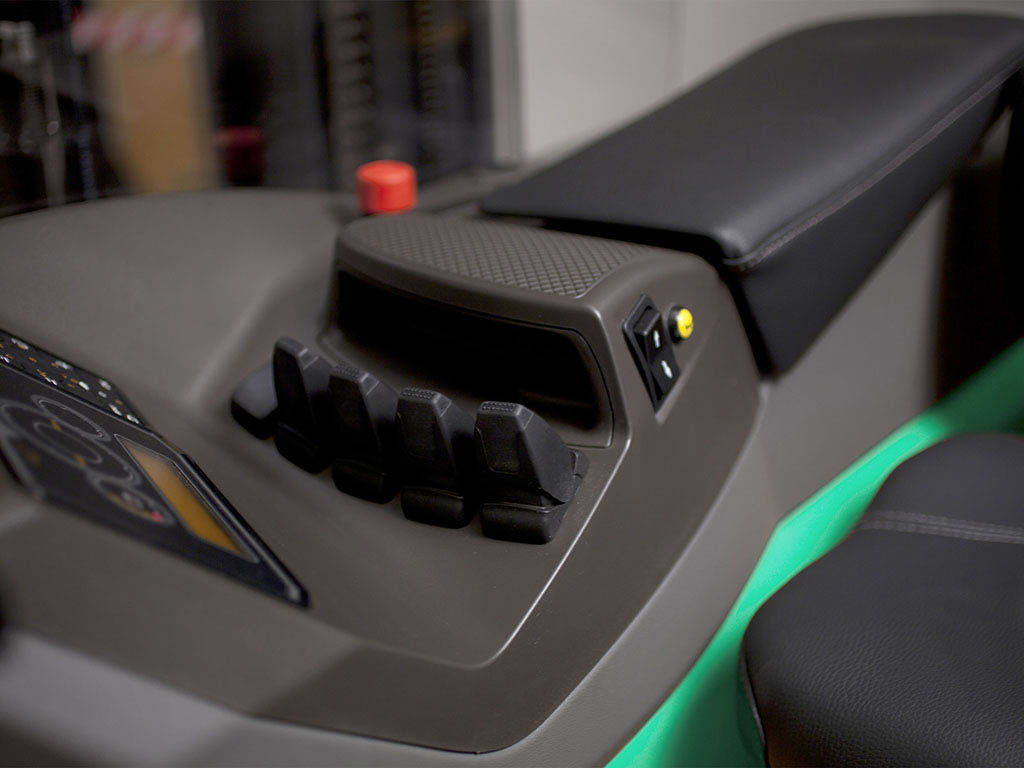

Soft Motion
A finely tuned algorithm adjusts reach, tilt and sideshift speed to greatly improve productivity and handling speed.

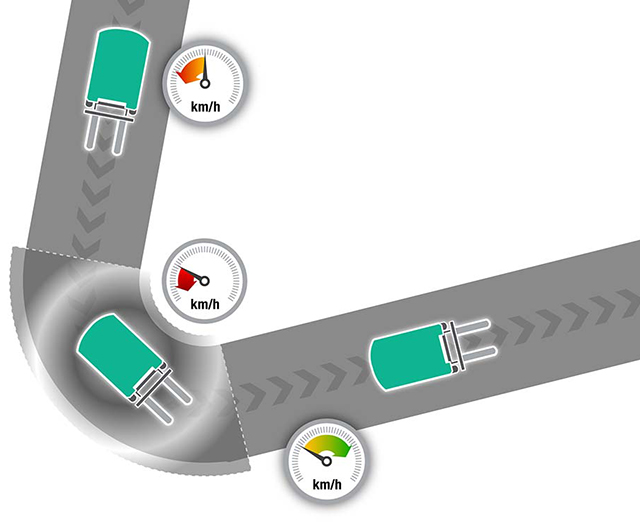

Helps prevent dangerously fast cornering using intelligent speed reduction from the moment the truck enters the turn, rather than kicking in harshly midway.
Sensing the angle of a turn, speed is dynamically reduced at the start of and throughout the turn for smoother, safer, and more consistent cornering.

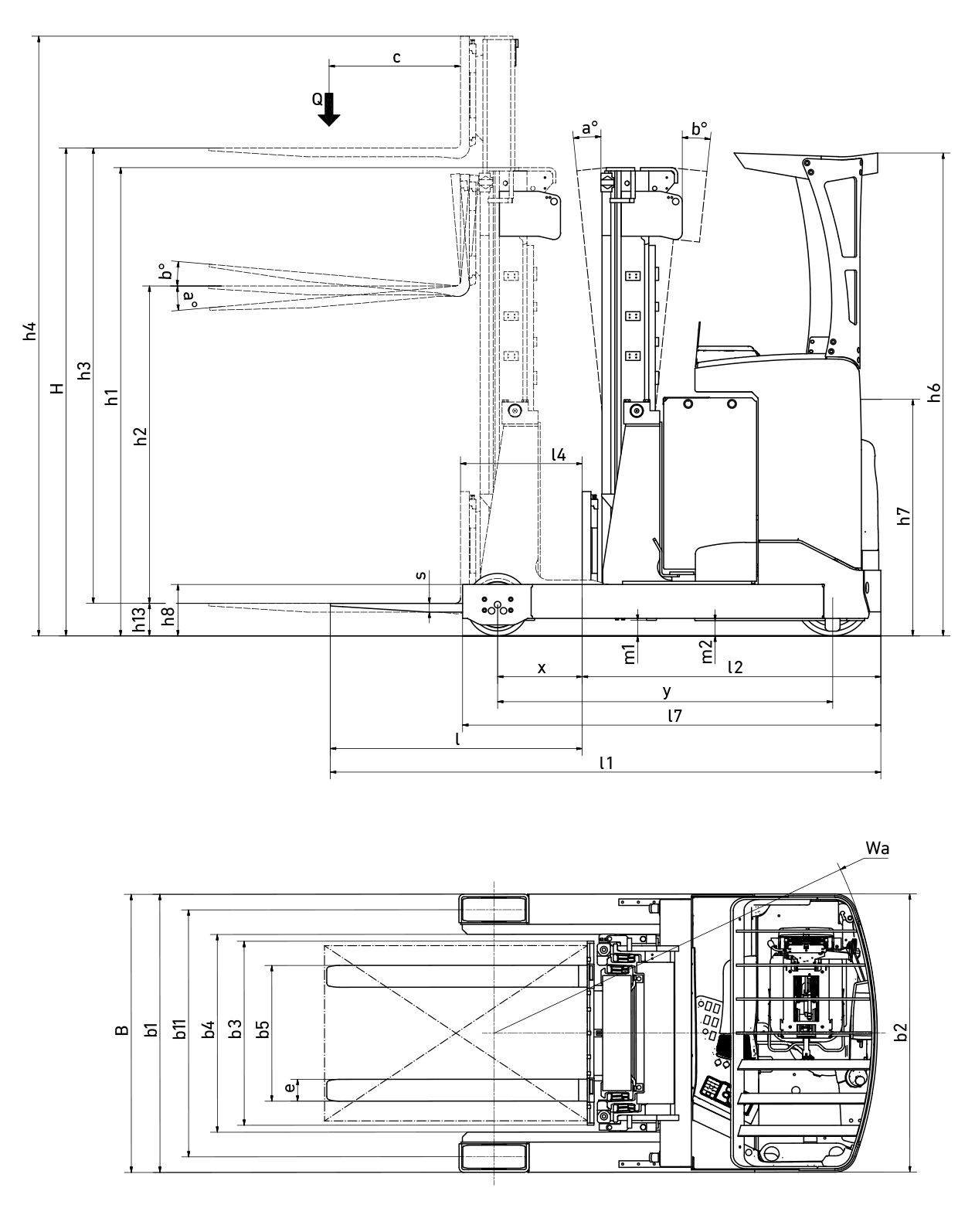

| Characteristics | ||||||
| 1.2 | Manufacturer's model designation | RB12N3L | RB14N3C | RB14N3L | ||
| 1.3 | Power source: (battery, diesel, LP gas, petrol) | Battery | Battery | Battery | ||
| 1.4 | Operator type: pedestrian, (operator)-standing, -seated | Seated | Seated | Seated | ||
| 1.5 | Load capacity | Q | kg | 1200 | 1400 | 1400 |
| 1.6 | Load centre distance | c | mm | 600 | 600 | 600 |
| 1.8 | Load wheel axle to fork face (forks lowered) | x | mm | ‡ | ‡ | ‡ |
| 1.9 | Wheelbase | y | mm | 1378 | 1378 | 1378 |
| Weight | ||||||
| 2.1b | Truck weight without load, with maximum battery weight | kg | 251010) | 3410 | 271010) | |
| 2.3 | Axle loadings without load & with maximum battery weight, drive/load side | kg | 1656 / 85410) | 1780 / 1230 | 1656 / 85410) | |
| 2.4 | Axle loading, mast forward, with nominal load, drive/load side | kg | 669 / 304110) | 570 / 3840 | 560 / 335010 | |
| 2.5 | Axle loading, mast retracted, with nominal load, drive/load side | kg | 1395 / 231510 | 1450 / 2960 | 1351 / 255910 | |
| Wheels, Drive Train | ||||||
| 3.1 | Tyres: PT=Power Thane, Vul=Vulkollan, drive/load side | Vul | Vul | Vul | ||
| 3.2 | Tyre dimensions, drive side | 355 x 155 | 355 x 155 | 355 x 155 | ||
| 3.3 | Tyre dimensions, load side | 220 x 85 | 220 x 85 | 220 x 85 | ||
| 3.5 | Number of wheels, drive/load side (x=driven) | 2 / 1 x | 2 / 1 x | 2 / 1 x | ||
| 3.7 | Track width (centre of tyres), load side | b11 | mm | 995 | 995 | 995 |
| Dimensions | ||||||
| 4.1 | Fork tilt, forwards / backwards | a / b | ° | 1 / 49) | 1 / 4 | 1 / 49) |
| 4.2a | Height with mast lowered | h1 | mm | ‡ | ‡ | ‡ |
| 4.3 | Free lift (see tables) | h2 | mm | ‡ | ‡ | ‡ |
| 4.4 | Lift height (see tables) | h3 | mm | ‡ | ‡ | ‡ |
| 4.5 | Height with mast extended | h4 | mm | ‡ | ‡ | ‡ |
| 4.7 | Height to top of overhead guard | h6 | mm | 2205 | 2205 | 2205 |
| 4.8 | Seat height | h7 | mm | 11461) | 11461) | 11461) |
| 4.10 | Height of support legs | 235 | 235 | 235 | ||
| 4.15 | Fork height, fully lowered | h13 | mm | 65 | 65 | 65 |
| 4.19 | Overall length | l1 | mm | ‡ | ‡ | ‡ |
| 4.20 | Length to fork face (includes fork thickness) | l2 | mm | ‡ | ‡ | ‡ |
| 4.21 | Overall width | b1/b2 | mm | 1120 | 1120 | 1120 |
| 4.22 | Fork dimensions (thickness, width, length) | s,e,l | mm | 40 / 100 / 1150 | 40 / 100 / 1150 | 40 / 100 / 1150 |
| 4.23 | Fork carriage to DIN 15 173 A/B/no | FEM 2A | FEM 2A | FEM 2A | ||
| 4.24 | Fork carriage width | b3 | mm | 910 | 830 | 910 |
| 4.25 | Outside width over forks (minimum/maximum) | b5 | mm | 316 / 697 | 316 / 697 | 316 / 697 |
| 4.26 | Inner width of support legs | b4 | mm | 900 | 900 | 900 |
| 4.28 | Mast reach | l4 | mm | ‡ | ‡ | ‡ |
| 4.32 | Ground clearance at centre of wheelbase, (forks lowered) | m2 | mm | 70 | 70 | 70 |
| 4.33a | Working aisle width (Ast) with 1000 × 1200 mm pallets, load crosswise, platform up/down | Ast | mm | ‡ | ‡ | ‡ |
| 4.34a | Working aisle width (Ast) with 800 × 1200 mm pallets, load lengthwise, platform up/down | Ast | mm | ‡ | ‡ | ‡ |
| 4.35 | Turning circle radius | Wa | mm | ‡ | ‡ | ‡ |
| 4.37 | Truck length over load legs | l7 | mm | 1725 | 1725 | 1725 |
| Performance | ||||||
| 5.1 | Travel speed, with/without load | km/h | 12.3 / 12.5 | 12.3 / 12.5 | 12.3 / 12.5 | |
| 5.2 | Lifting speed, with/without load | m/s | 0.46 / 0.5410) | 0.32 / 0.49 | 0.37 / 0.5410) | |
| 5.3 | Lowering speed, with/without load | m/s | 0.58 / 0.6010) | 0.57 / 0.48 | 0.58 / 0.6010) | |
| 5.5 | Rated drawbar pull, with/without load | N | 0.2 / 0.2 | 0.2 / 0.2 | 0.2 / 0.2 | |
| 5.8 | Maximum gradeability, with/without load | s | 13.1 / 19.6 | 13.1 / 19.6 | 13.1 / 19.6 | |
| 5.9 | Acceleration time (10 metres) with/without load | s | 4.9 / 4.4 | 4.9 / 4.4 | 4.9 / 4.4 | |
| 5.10 | Service brakes (mechanical /hydraulic /electric /pneumatic) | Electric | Electric | Electric | ||
| Electric Motors | ||||||
| 6.1 | Drive motor capacity (60 min. short duty) | kW | 5.9 | 5.9 | 5.9 | |
| 6.2 | Lift motor output at 15% duty factor | kW | 11 | 11 | 11 | |
| 6.4 | Battery voltage/capacity at 5-hour discharge | V/Ah | 48 - 30011) / 465 | 48 - 465 /620 / 775 | 48 - 465 / 620 | |
| 6.5 | Battery weight | kg | 533 / 708 | 708 / 890 / 1063 | 708 / 890 | |
| Miscellaneous | ||||||
| 8.1 | Type of drive control | Stepless | Stepless | Stepless | ||
| 10.1 | Operating pressure for attachments | bar | 150 | 150 | 150 | |
| 10.2 | Oil volume for attachments | L/min | 25 | 25 | 25 | |
| 10.7 | Sound pressure level at the driver's seat | dB (A) | 57.4 | 57.4 | 57.4 | |
| 10.7c | Level of noise at the ear level of the driver according to EN 12 053:2001 and EN ISO 487, drive/lift/idle LpAZ | dB(A) | < 2.5 | < 2.5 |
1) Measured with standard seat to SIP point
9) Mast tilt
10) T mast
11) DTFV mast
‡ See specification sheet for full range of masts and other dimensions.
