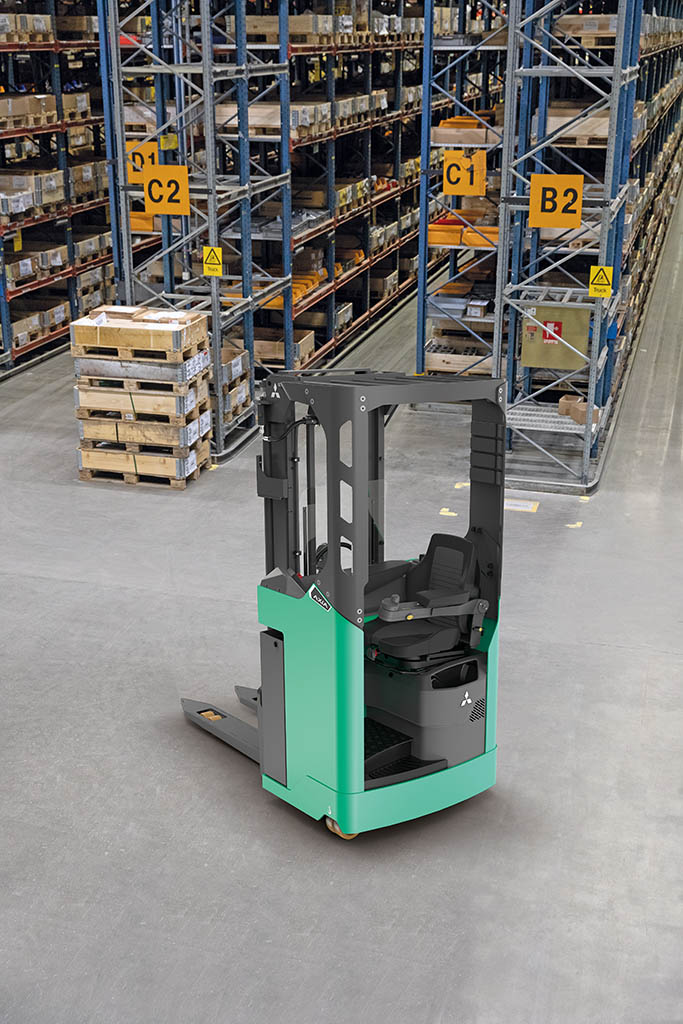

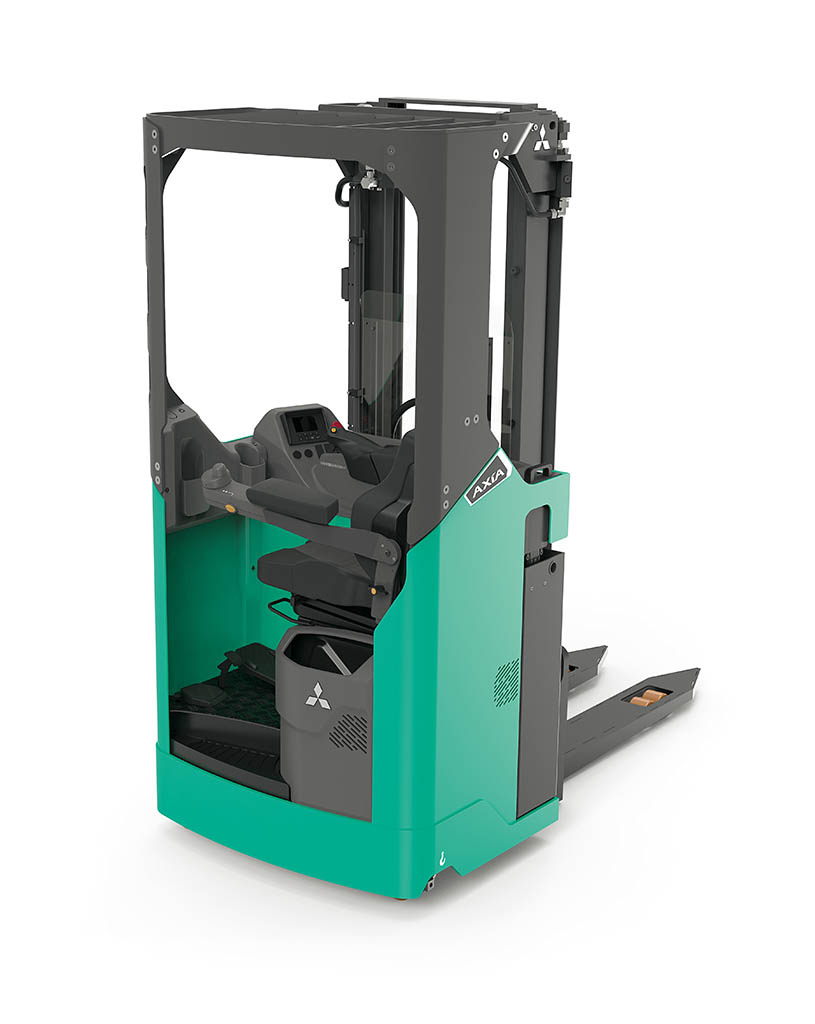

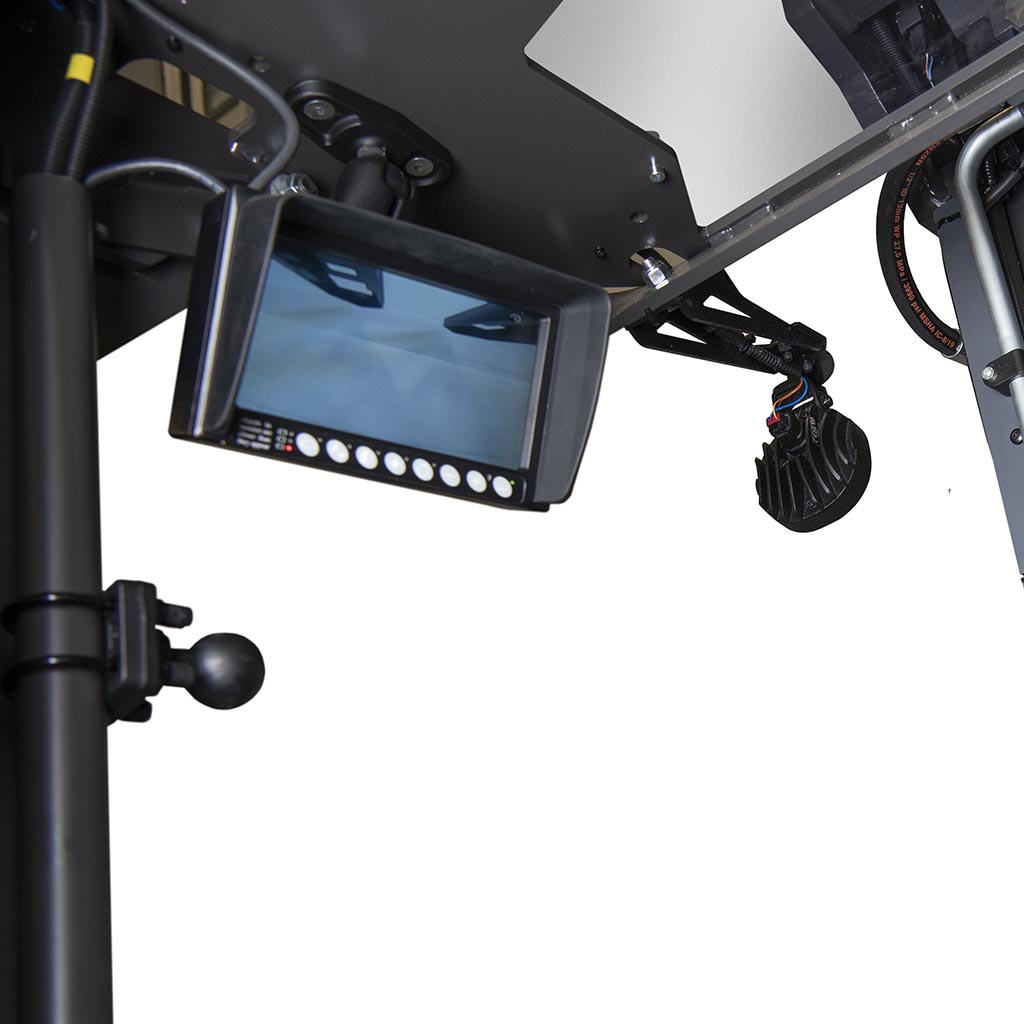

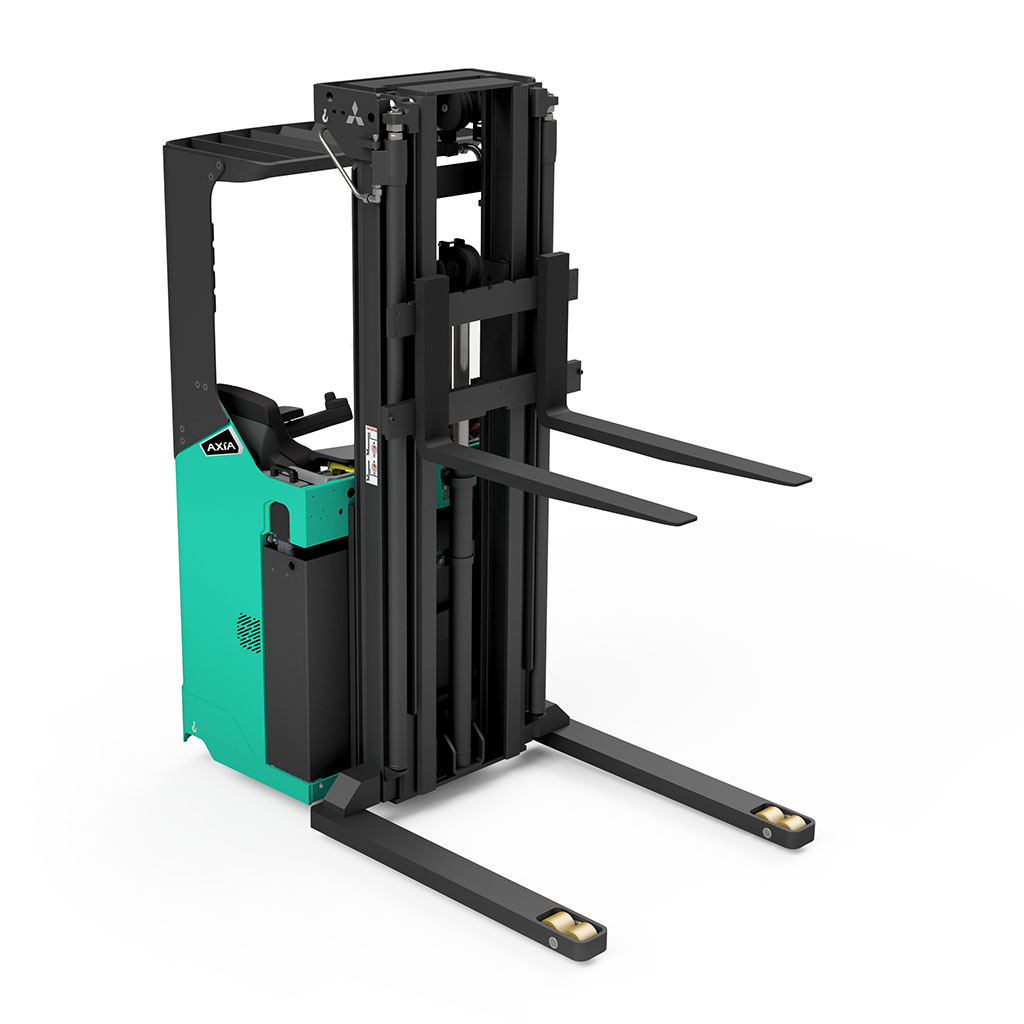

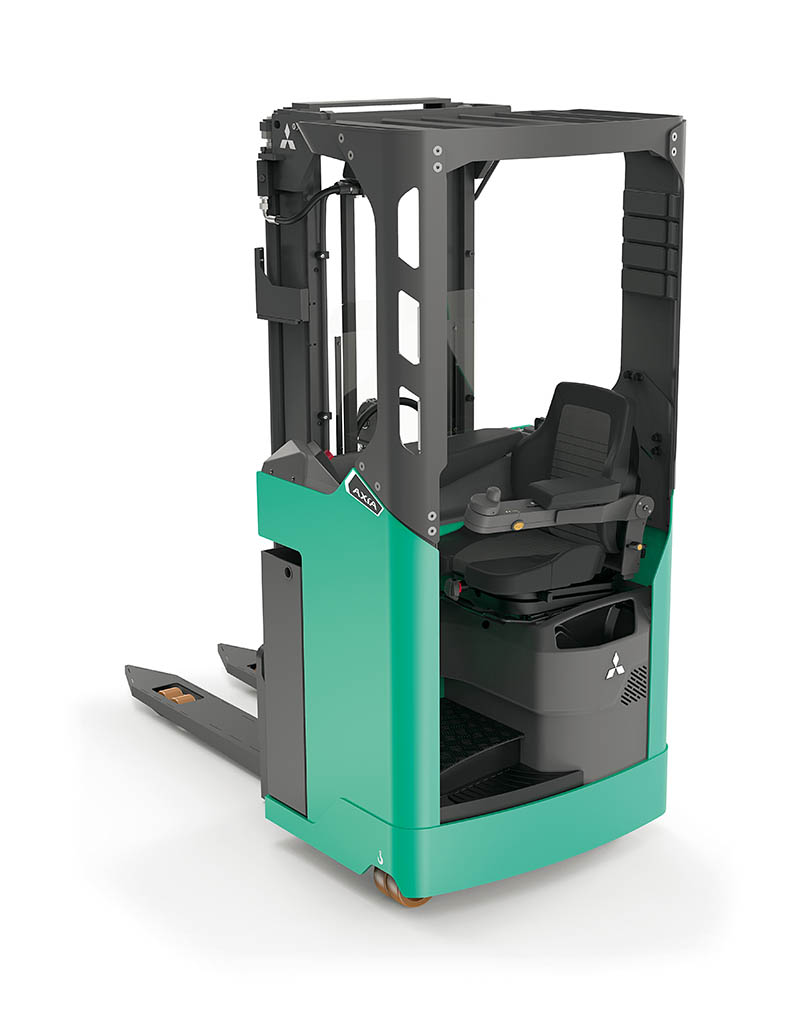

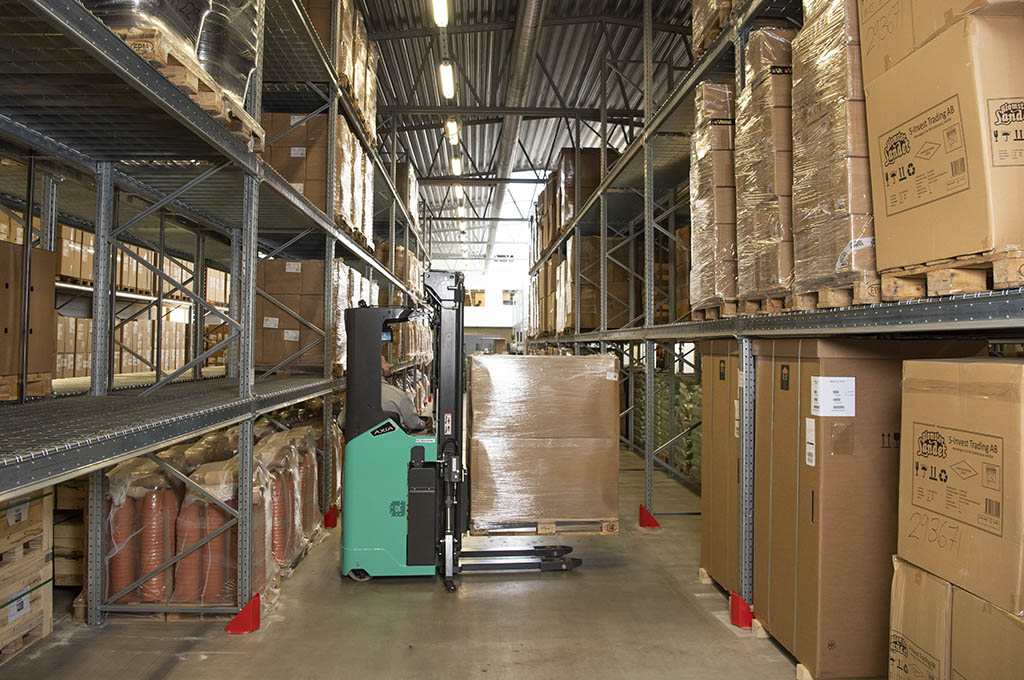

The AXiA EX sit-on stacker is a flexible and cost-effective choice for stacking and internal transport in warehousing, manufacturing, and anywhere else safe, productive stacking is required. Platform stackers are more commonly used for these tasks but with an aisle width (AST) requirement of 2.8 m (vs 2.5 m on the AXiA EX) and lift heights of only 5.4 m (vs 7 m for the AXiA EX), it's easy to see where the sit-on stacker presents an opportunity to make much better use of space. Many companies use reach trucks for stacking tasks, but they may be over specified for the task. For these jobs the AXiA sit-on stacker makes an excellent low-cost alternative.
If greater use of space is required, its compact design also makes it a viable and affordable alternative to building a warehouse expansion or implementing a full, complex VNA solution.
Easy maintenance, high performance, long service intervals, and Mitsubishi Forklift Trucks reliability make for a powerful package. Add the initial lift option to double the pallet handling capability and you could see productivity soar.
| Model | Load Capacity |
|---|---|
| SBS16N2 | 1600 kg |
| SBS16N2I | 1600 kg |
| SBS20N2 | 2000 kg |
| SBS20N2I | 2000 kg |
This option allows for quick charging, while minimising maintenance - avoiding the need for costly extra batteries and time-consuming changeovers. (Option)
As well as the high-stability chassis design, automatic systems are in place additional to automatically reduce acceleration during sharper turns and reduce drive speed when forks are above 1.7 m.

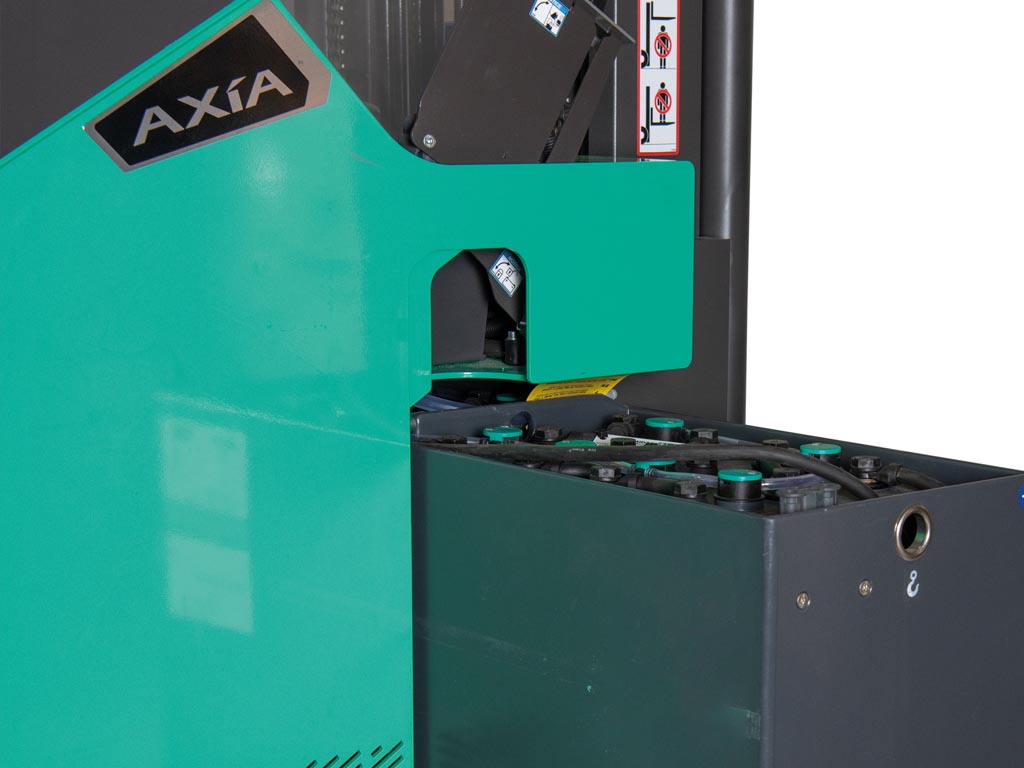

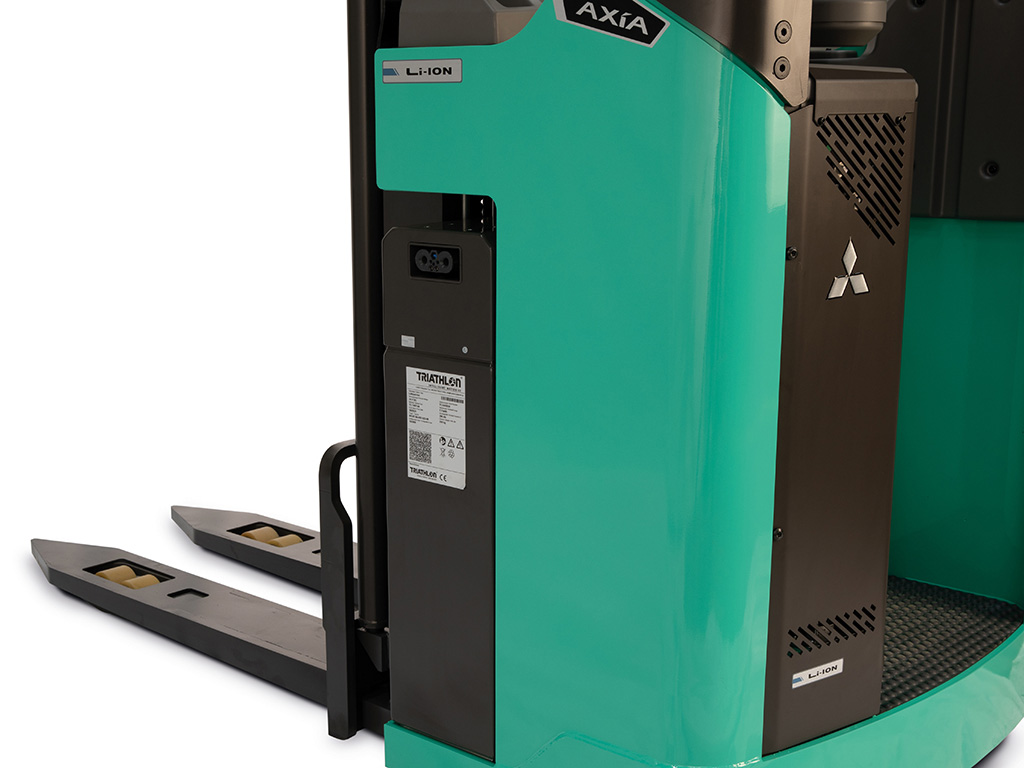

An external battery plug allows for easy charging of Lead-acid batteries without the need to unplug the internal connection. For safety, the truck is unable to operate while plugged in. (Option)

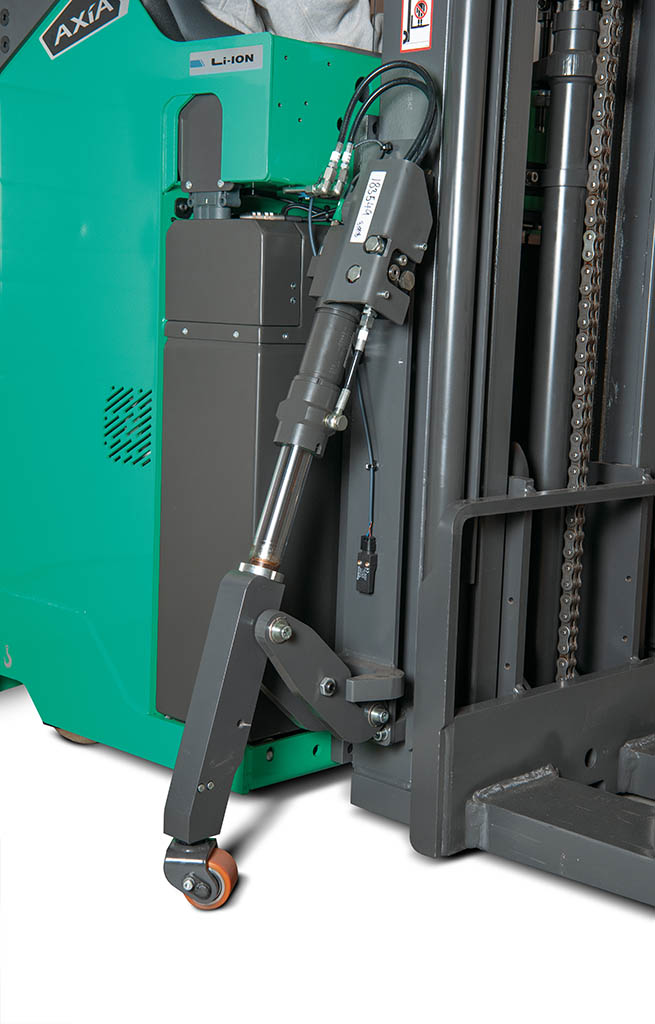

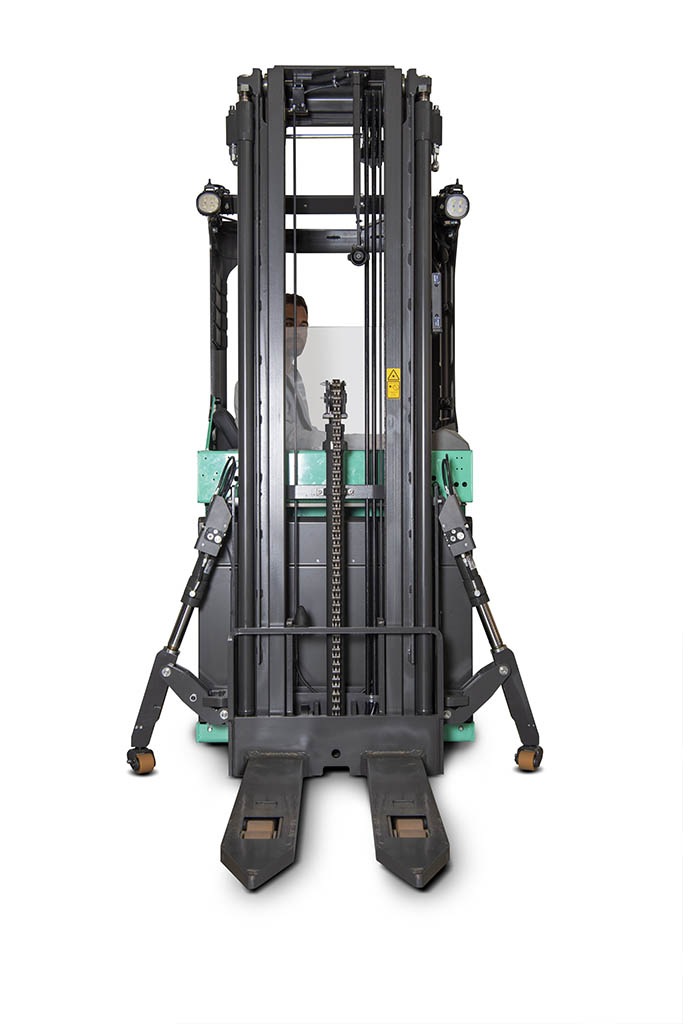

The stabilizers fold up and down simultaneously with the forks for efficient stacking operations, significantly increasing residual capacities on high lift heights. (Option)

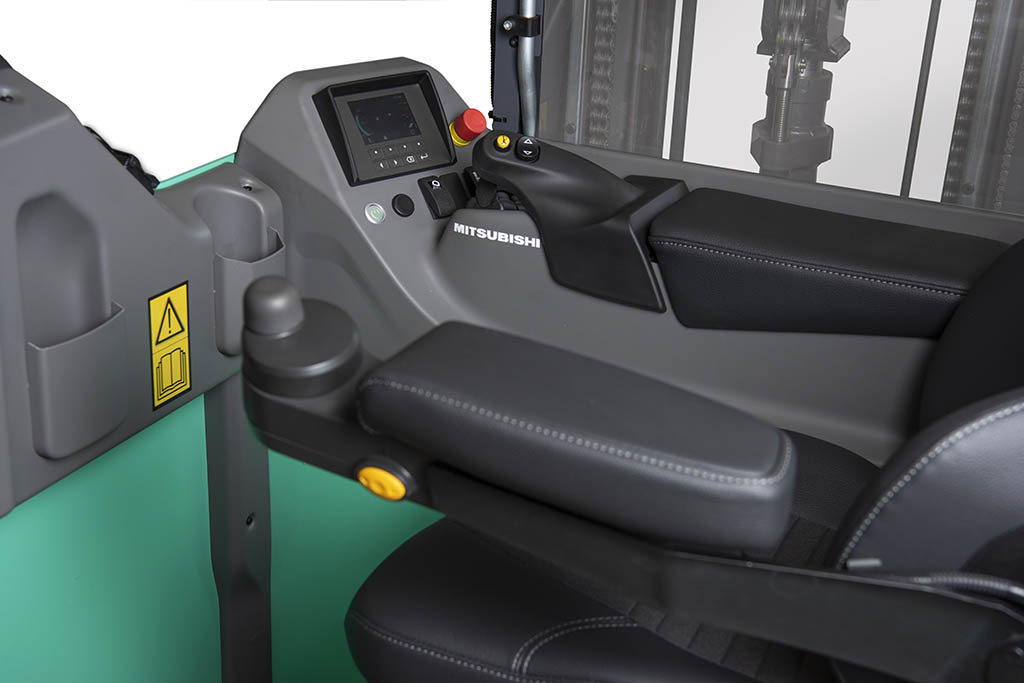

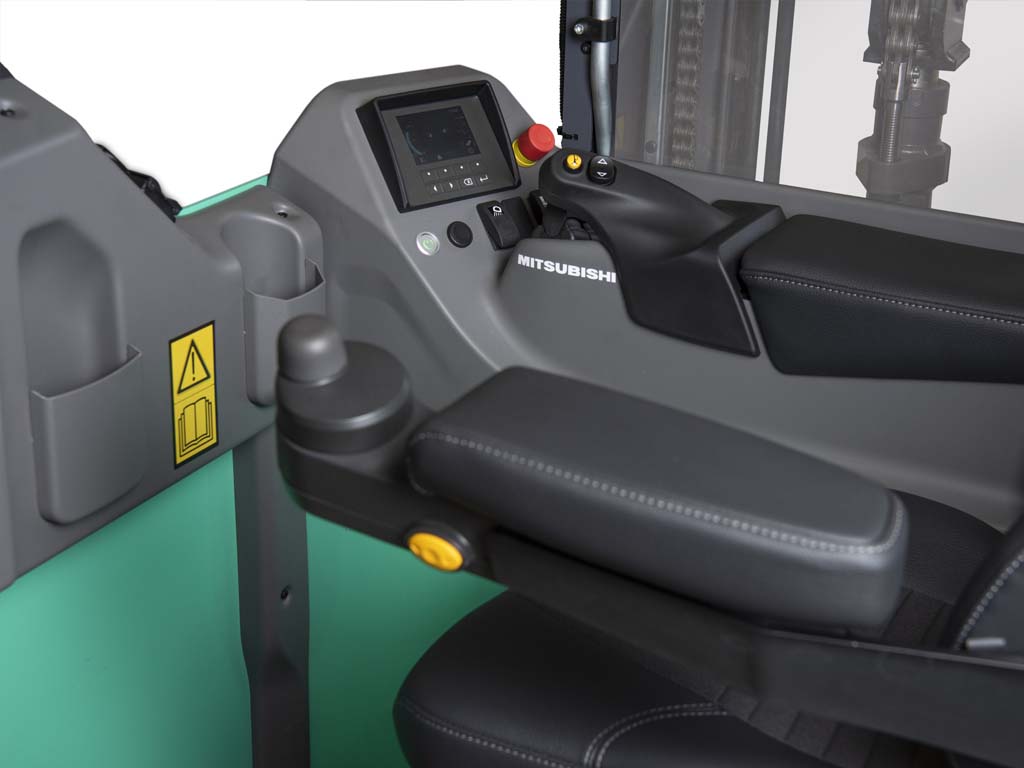

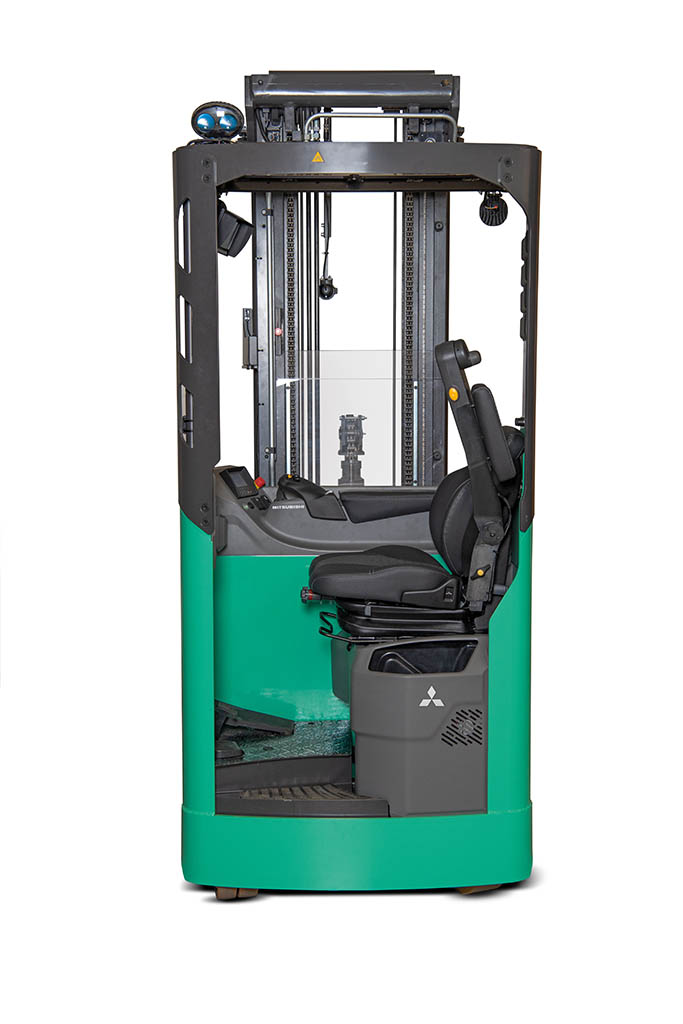

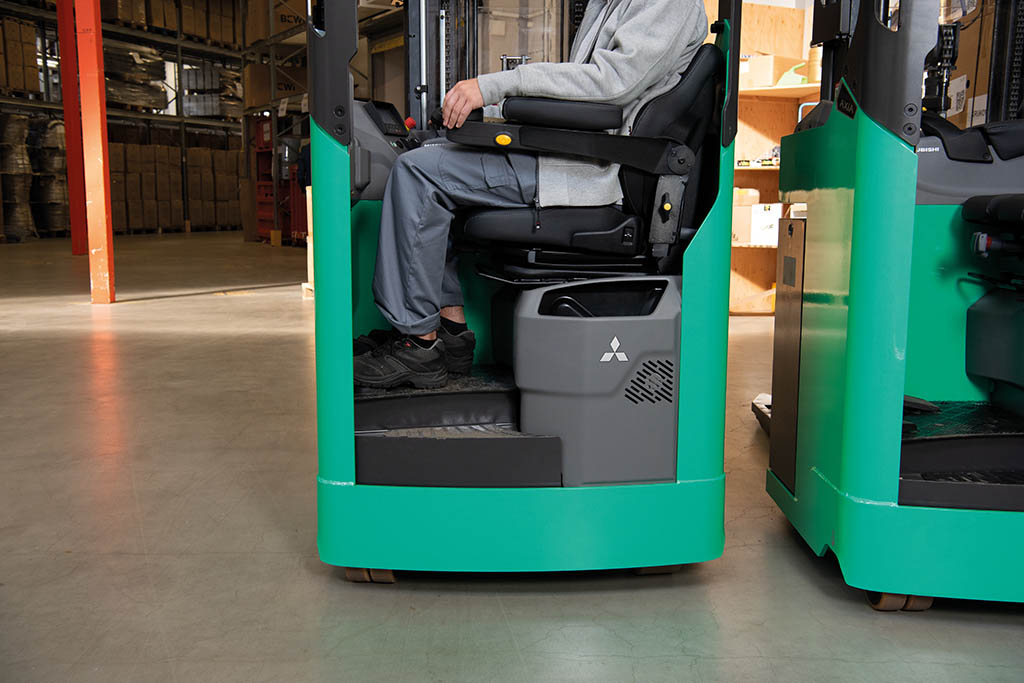

This ergonomically adjustable control setup makes operating far more comfortable for the driver during long shifts. This not only minimises fatigue, keeping them more focused and productive, but reduces the risk of RSI and other strains in the neck and shoulders, a common cause of driver absence which comes with related costs.
Intelligent Cornering System

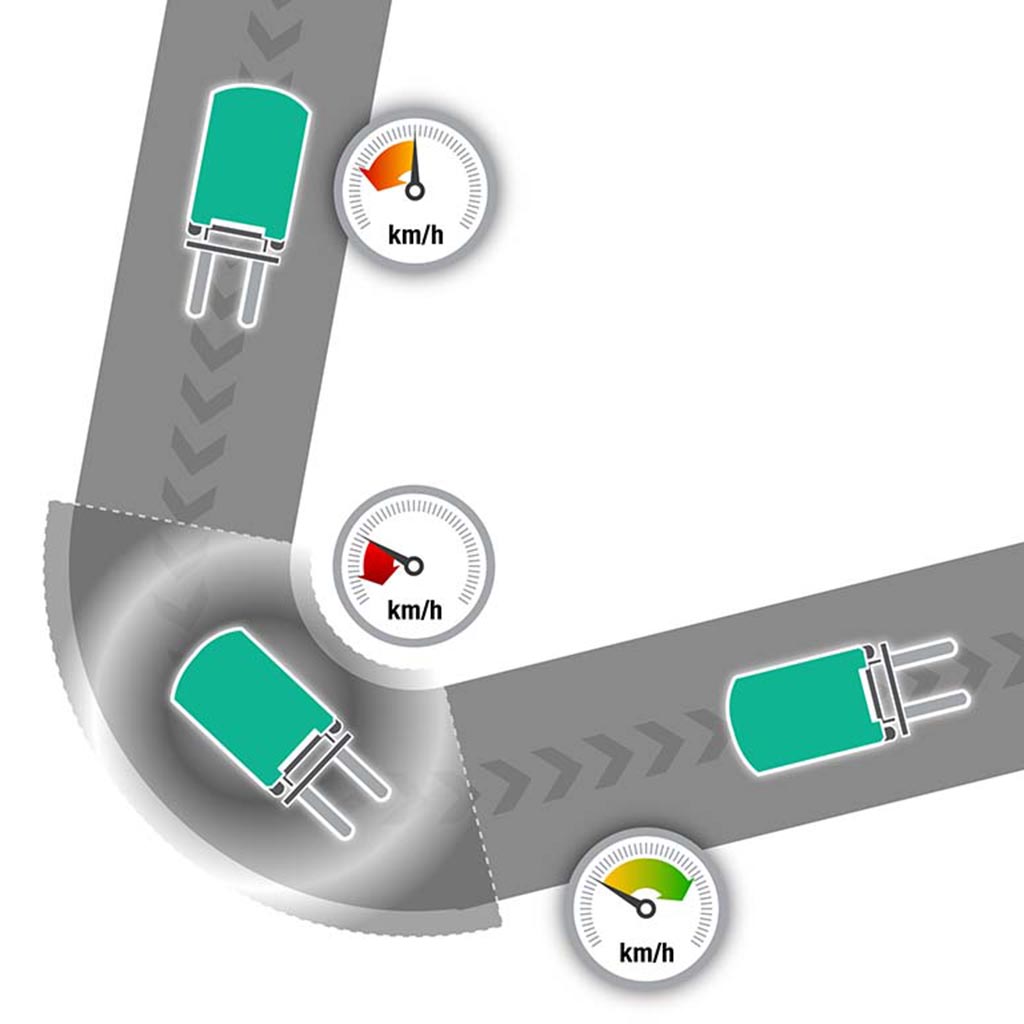

The truck senses the angle of a turn and reduces speed early for maximum stability and accurate, positive cornering.

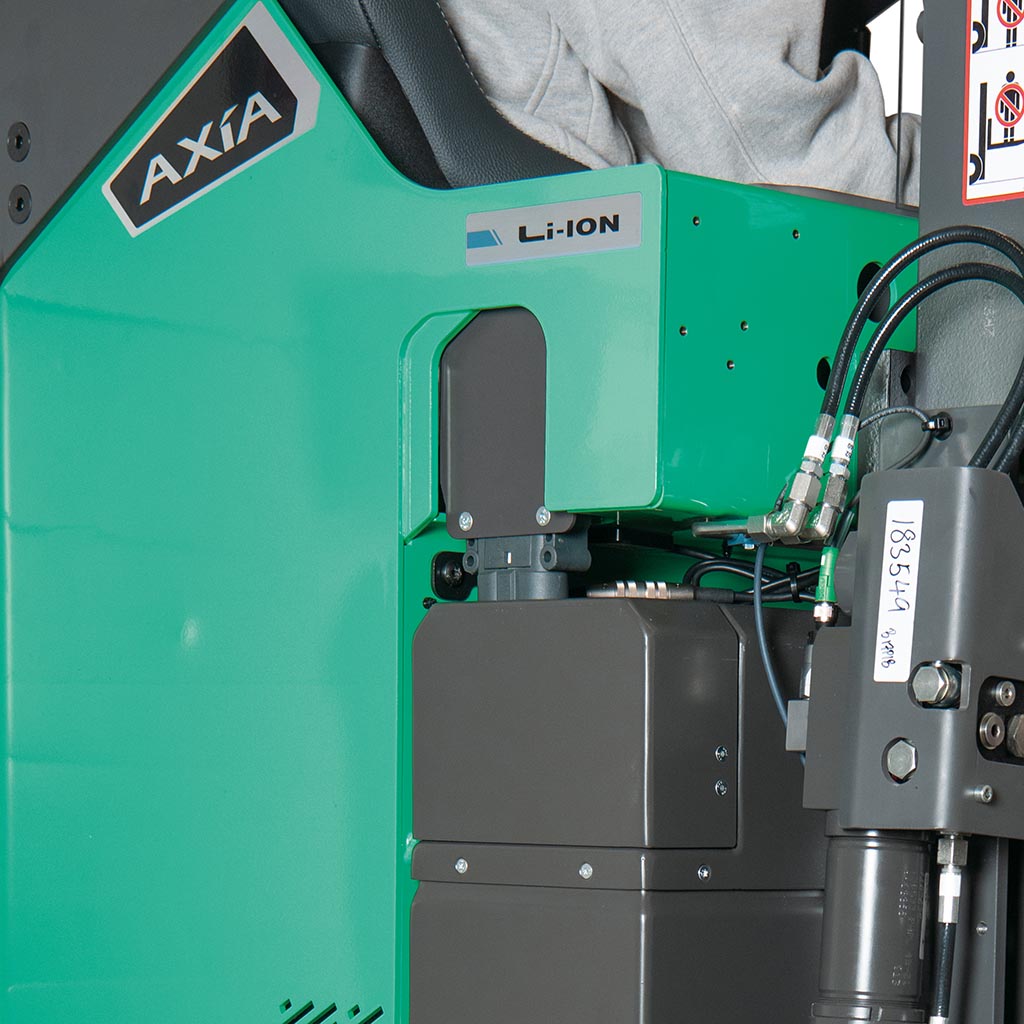

Built-in Li-ion battery
Fast opportune charging removes the need for extra batteries and allows 24/7 operation. (Junior chassis only) (Option)
360-degree steering
The operator can keep the truck in constant motion - saving seconds on every turn. (Option)
Enhanced Stability System (ESS)
4-point chassis for maximum stability, drive speed is reduced when forks are lifted, and acceleration is reduced when steering angle exceeds 45 degrees.
Convenient charging
An extra battery plug on the outside of the truck allows for easy charging without needing to disconnect the internal battery plug. (Lead acid batteries)
Level Assistance System
Automatically detects the operator's intention and automatically stops when the forks are at precisely the right level. (Option)
Excellent ground clearance
Easy and safe handling on loading docks and ramps.
Direction switch on handle
Alternative for drivers who prefer hand control rather than direction control on a pedal. Standard with cold storage modification or 360-degree steering. (Option)

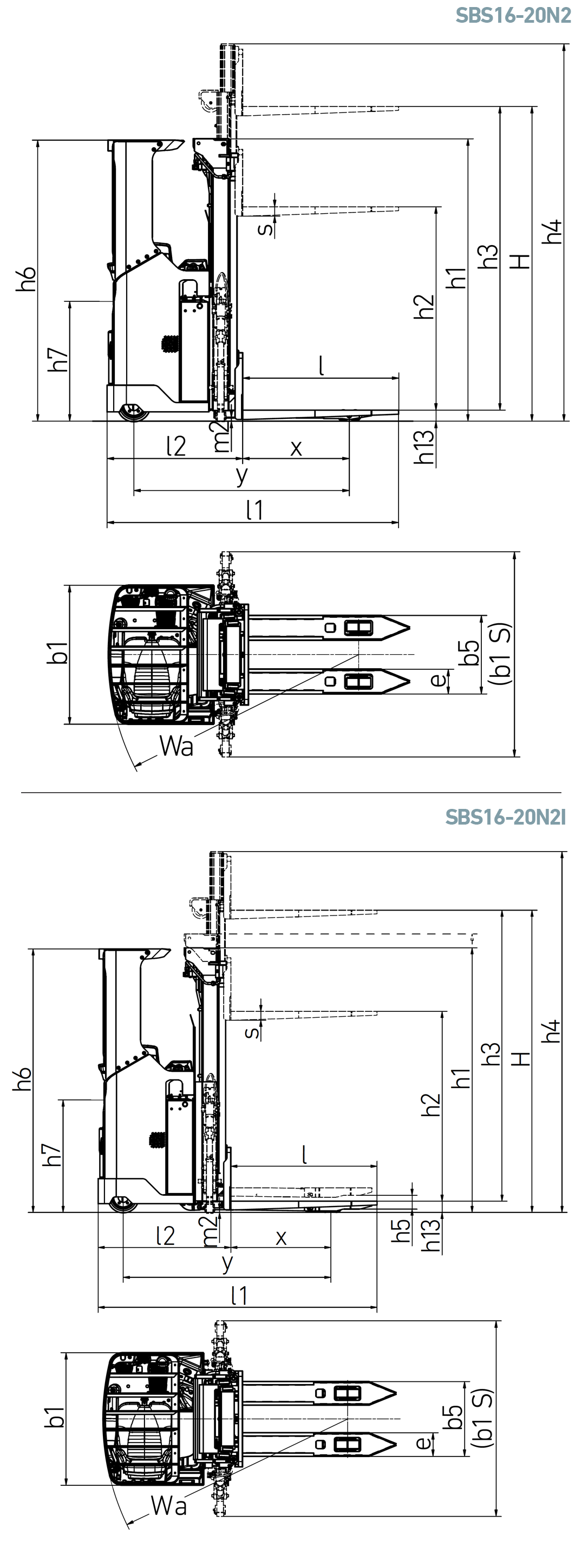

| Characteristics | |||||||
| 1.2 | Manufacturer's model designation | SBS16N2 | SBS16N2I | SBS20N2 | SBS20N2I | ||
| 1.3 | Power source: (battery, diesel, LP gas, petrol) | Battery | Battery | Battery | Battery | ||
| 1.4 | Operator type: pedestrian, (operator)-standing, -seated | Sit-on | Sit-on | Sit-on | Sit-on | ||
| 1.5 | Load capacity | Q | kg | 1600 | 1600 | 2000 | 2000 |
| 1.6 | Load centre distance | c | mm | 600 | 600 | 600 | 600 |
| 1.8 | Load wheel axle to fork face (forks lowered) | x | mm | 800 | 800 | 800 | 800 |
| 1.9 | Wheelbase | y | mm | 16161) | 16611) | 16651) | 17201) |
| Weight | |||||||
| 2.1b | Truck weight without load, with maximum battery weight | kg | 1866 | 2015 | 2127 | 2294 | |
| 2.2 | Axle loadings with nominal load & maximum battery weight, drive/load side | kg | 1466 / 2000 | 1571 / 2045 | 1690 / 2438 | 1806 / 2488 | |
| 2.3 | Axle loadings without load & with maximum battery weight, drive/load side | kg | 1306 / 560 | 1411 / 605 | 1490 / 638 | 1606 / 688 | |
| Wheels, Drive Train | |||||||
| 3.1 | Tyres: PT=Power Thane, Vul=Vulkollan, drive/load side | Vul / Vul | Vul / Vul | Vul / Vul | Vul / Vul | ||
| 3.2 | Tyre dimensions, drive side | 250 x 105 | 250 x 105 | 250 x 105 | 250 x 105 | ||
| 3.3 | Tyre dimensions, load side | 85 x 70 | 85 x 70 | 85 x 70 | 85 x 70 | ||
| 3.4 | Castor wheel dimensions (diameter x width) | 150 x 55 | 150 x 55 | 150 x 55 | 150 x 55 | ||
| 3.5 | Number of wheels, drive/load side (x=driven) | 1 x + 2 / 4 | 1 x + 2 / 4 | 1 x + 2 / 4 | 1 x + 2 / 4 | ||
| 3.6 | Track width (centre of tyres), drive side | b10 | mm | 706 | 706 | 706 | 706 |
| 3.7 | Track width (centre of tyres), load side | b11 | mm | 402 | 402 | 392 | 392 |
| Dimensions | |||||||
| 4.6 | Initial Lift | h5 | mm | 110 | 110 | ||
| 4.7 | Height to top of overhead guard | h6 | mm | 2110 | 2110 | 2110 | 2110 |
| 4.8 | Seat height | h7 | mm | 966 | 966 | 966 | 966 |
| 4.10 | Height of support legs | 80 | 87 | 83 | 87 | ||
| 4.15 | Fork height, fully lowered | h13 | mm | 87 | 93 | 90 | 93 |
| 4.19 | Overall length | l1 | mm | 21891) | 2233 1) | 22381) | 22931) |
| 4.20 | Length to fork face (includes fork thickness) | l2 | mm | 10191) | 10631) | 10681) | 11231) |
| 4.21 | Overall width | b1/b2 | mm | 1010 | 1010 | 1010 | 1010 |
| 4.22 | Fork dimensions (thickness, width, length) | s,e,l | mm | 70 / 180 / 1170 | 70 / 180 / 1170 | 70 / 195 / 1170 | 70 / 195 / 1170 |
| 4.25 | Outside width over forks (minimum/maximum) | b5 | mm | 570 | 570 | 570 | 570 |
| 4.32 | Ground clearance at centre of wheelbase, (forks lowered) | m2 | mm | 25 | 20 | 23 | 20 |
| 4.34a | Working aisle width (Ast) with 800 × 1200 mm pallets, load lengthwise, platform up/down | Ast | mm | 25842) | 26272) | 26321) | 26852) |
| 4.34b | Working aisle width (Ast3) with 800 × 1200 mm pallets, load lengthwise, platform up/down | Ast3 | mm | 2419 | 2461 | 2466 | 2520 |
| 4.35 | Turning circle radius | Wa | mm | 18192) | 18612) | 18662) | 19202) |
| Performance | |||||||
| 5.1 | Travel speed, with/without load | km/h | 10 / 10 | 9 / 9 | 9 / 9 | 9 / 9 | |
| 5.2 | Lifting speed, with/without load | m/s | 0.16 / 0.32 | 0.16 / 0.32 | 0.12 / 0.22 | 0.12 / 0.22 | |
| 5.3 | Lowering speed, with/without load | m/s | 0.44 / 0.41 | 0.44 / 0.41 | 0.33 / 0.30 | 0.33 / 0.30 | |
| 5.8 | Maximum gradeability, with/without load | s | 6.7 / 6.7 | 26.6 / 26.6 | 5.9 / 5.9 | 25.5 / 25.6 | |
| 5.10 | Service brakes (mechanical /hydraulic /electric /pneumatic) | Electric | Electric | Electric | Electric | ||
| Electric Motors | |||||||
| 6.1 | Drive motor capacity (60 min. short duty) | kW | 2.7 | 2.7 | 2.7 | 2.7 | |
| 6.2 | Lift motor output at 15% duty factor | kW | 4.0 | 4.0 | 4.0 | 4.0 | |
| 6.4 | Battery voltage/capacity at 5-hour discharge | V/Ah | 24 / 375 - 775 | 24 / 375 - 775 | 24 / 375 - 775 | 24 / 375 - 775 | |
| 6.5 | Battery weight | kg | 305 - 620 | 305 - 620 | 305 - 620 | 305 - 620 | |
| Miscellaneous | |||||||
| 8.1 | Type of drive control | AC | AC | AC | AC |
