Powerful performance
exceptional ergonomics

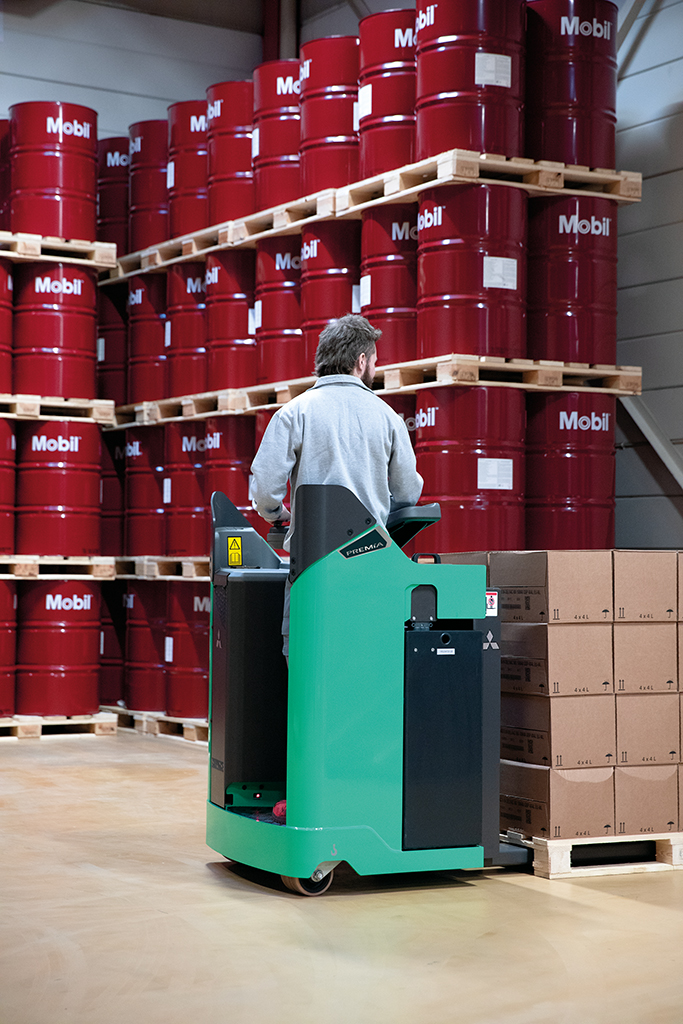

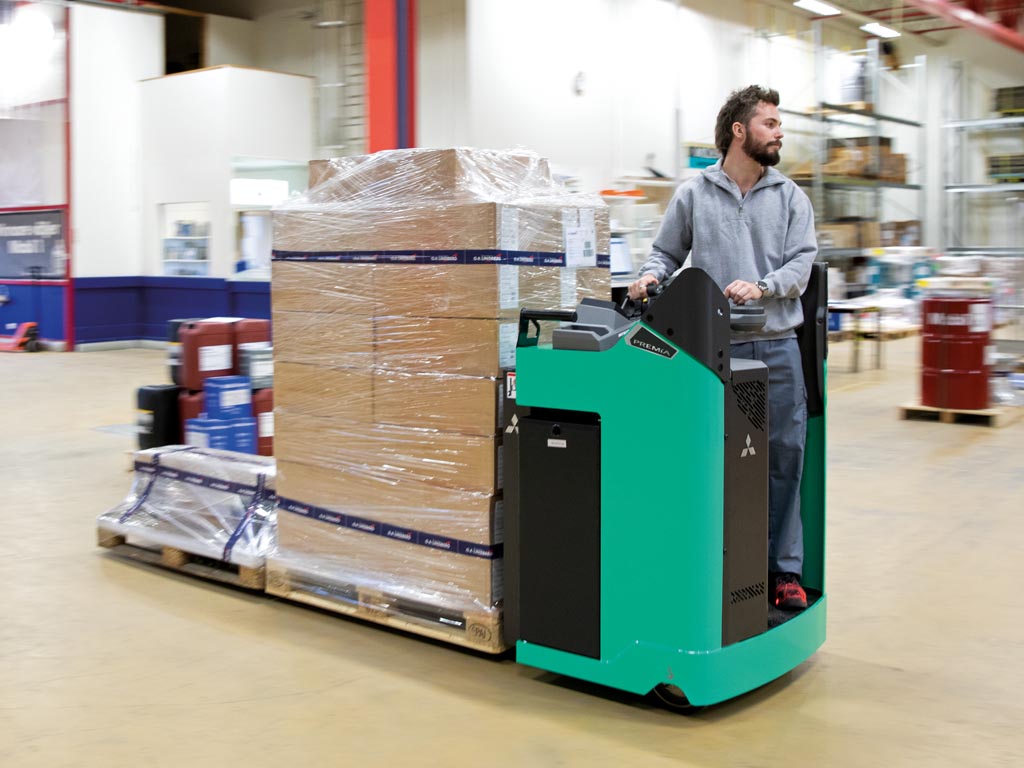

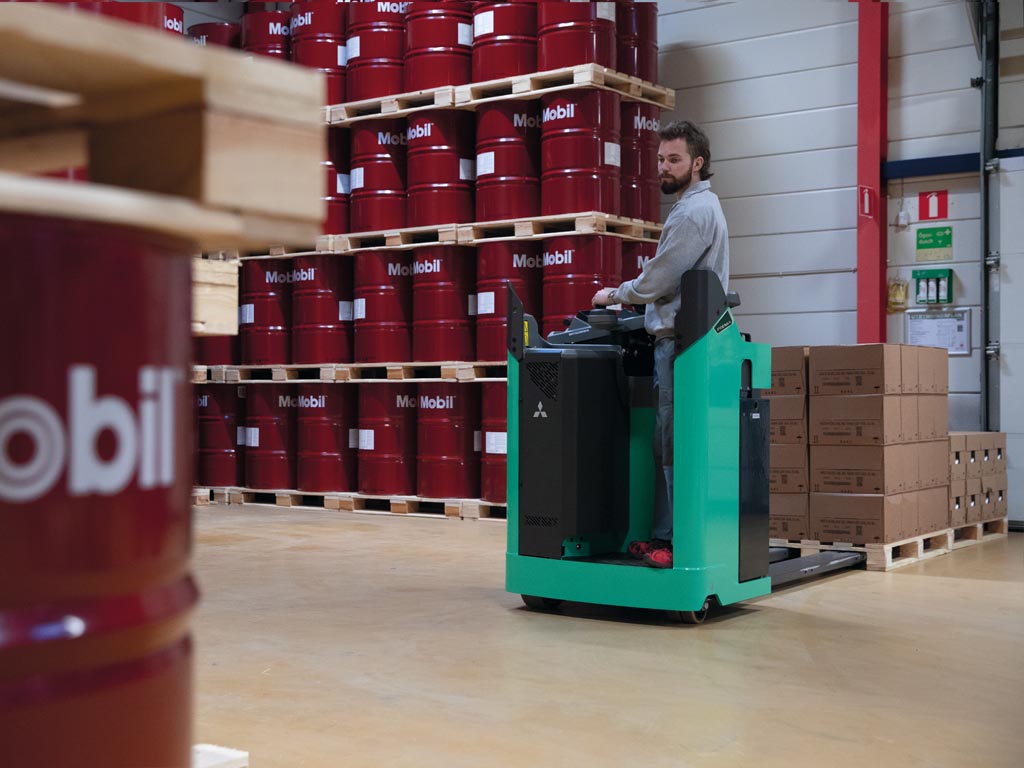

For horizontal transport over medium-to-long distances, ensure your operators have the comfort and safety benefits of a stand-in power pallet. The ergonomic controls, comfortable operator compartment, and easy entry and exit make longer shifts stress-free and far less fatiguing for the driver.

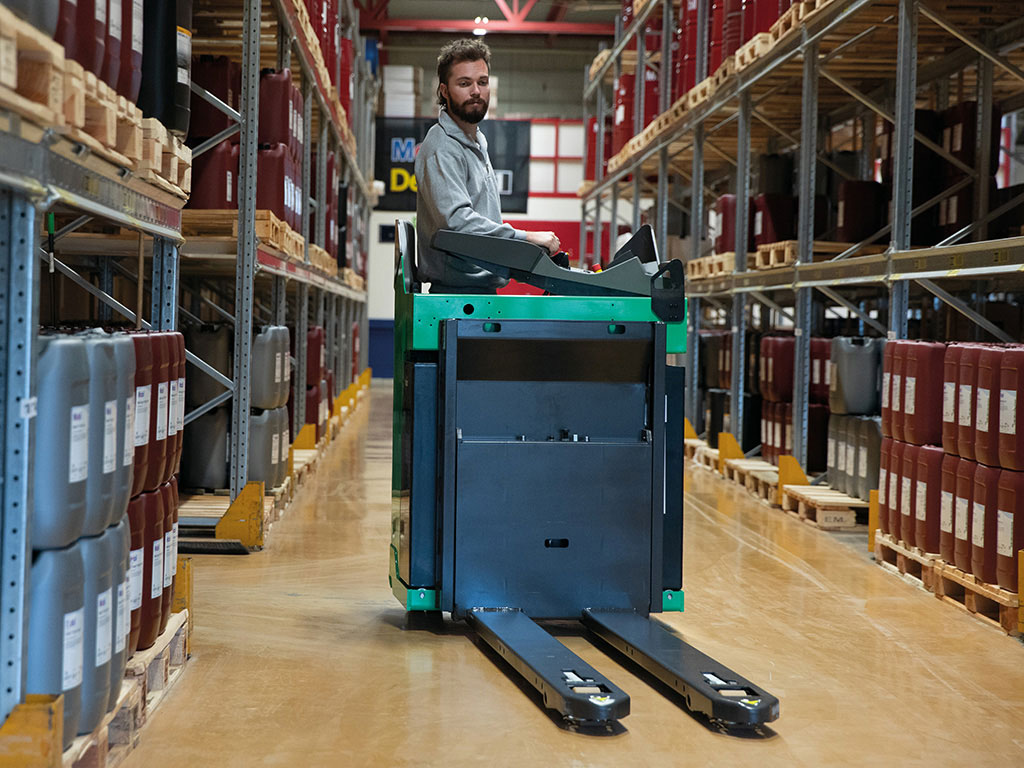

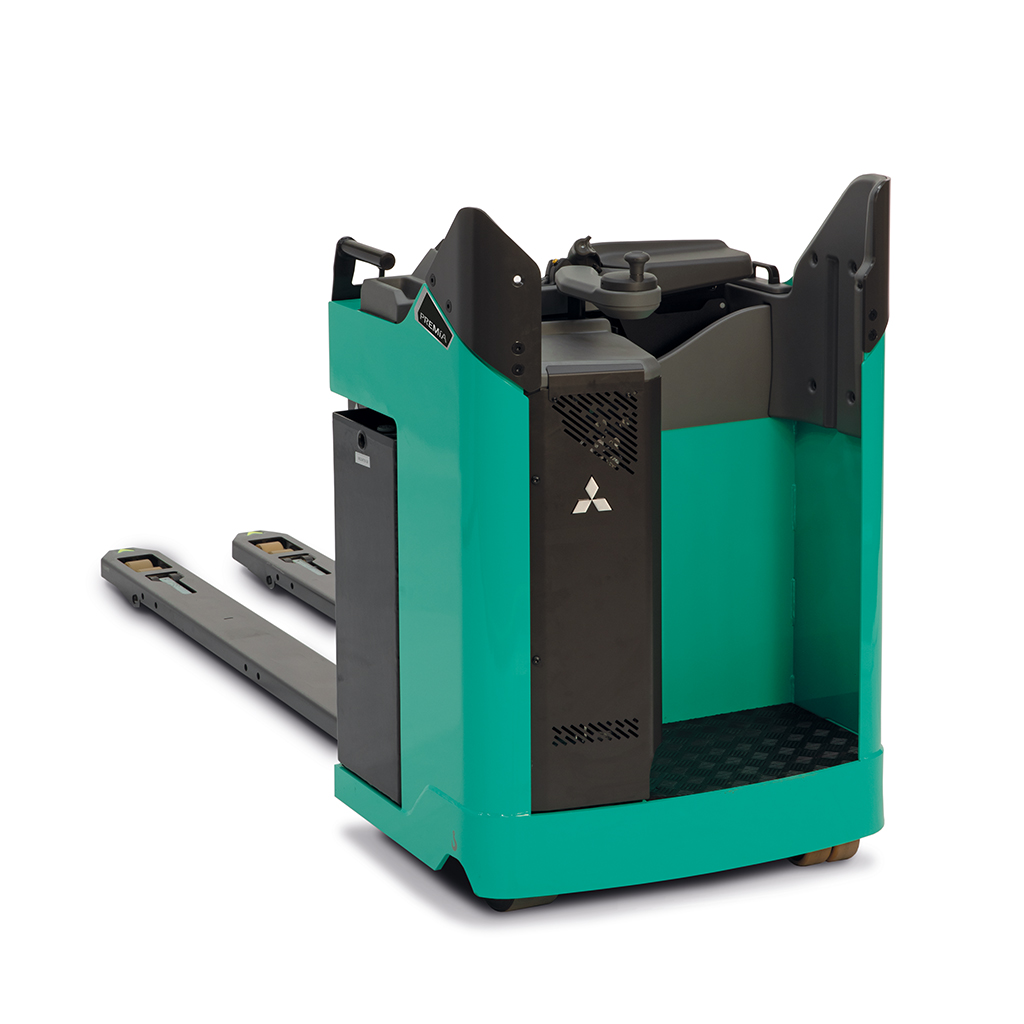

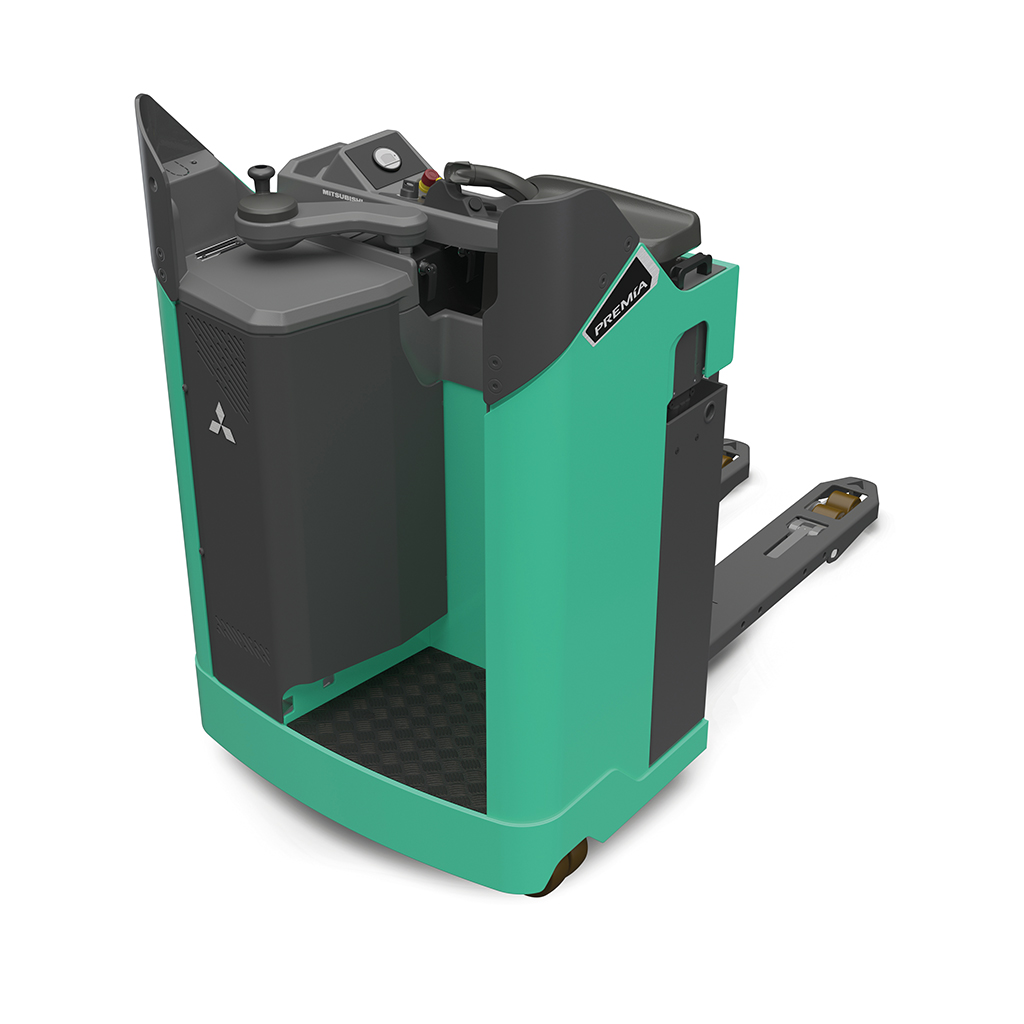

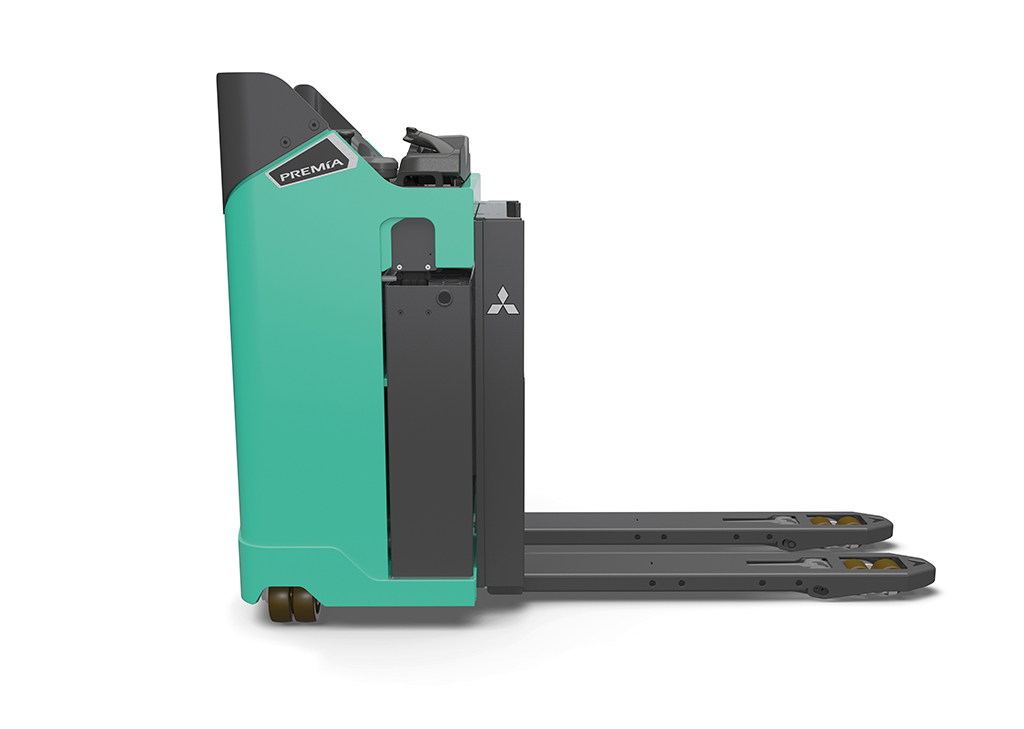

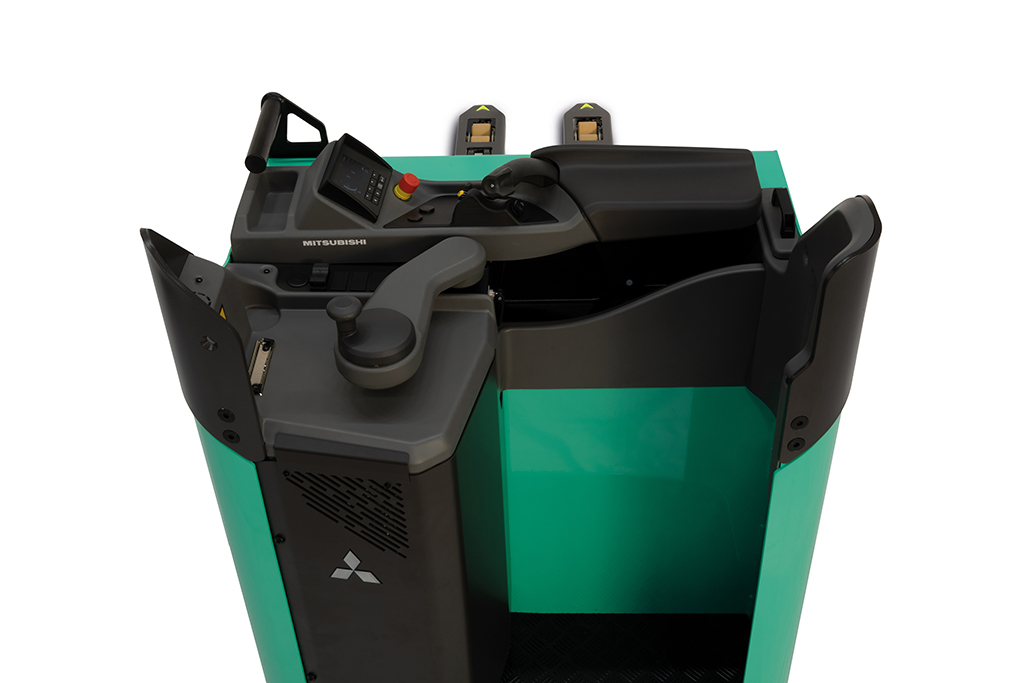

The stand-in power pallet design contains the operator completely within the truck, keeping them protected by the chassis. The stand-in concept also allows for a highly compact footprint. Along with the incredibly tight turning circle, this makes narrower aisle layouts much more feasible.

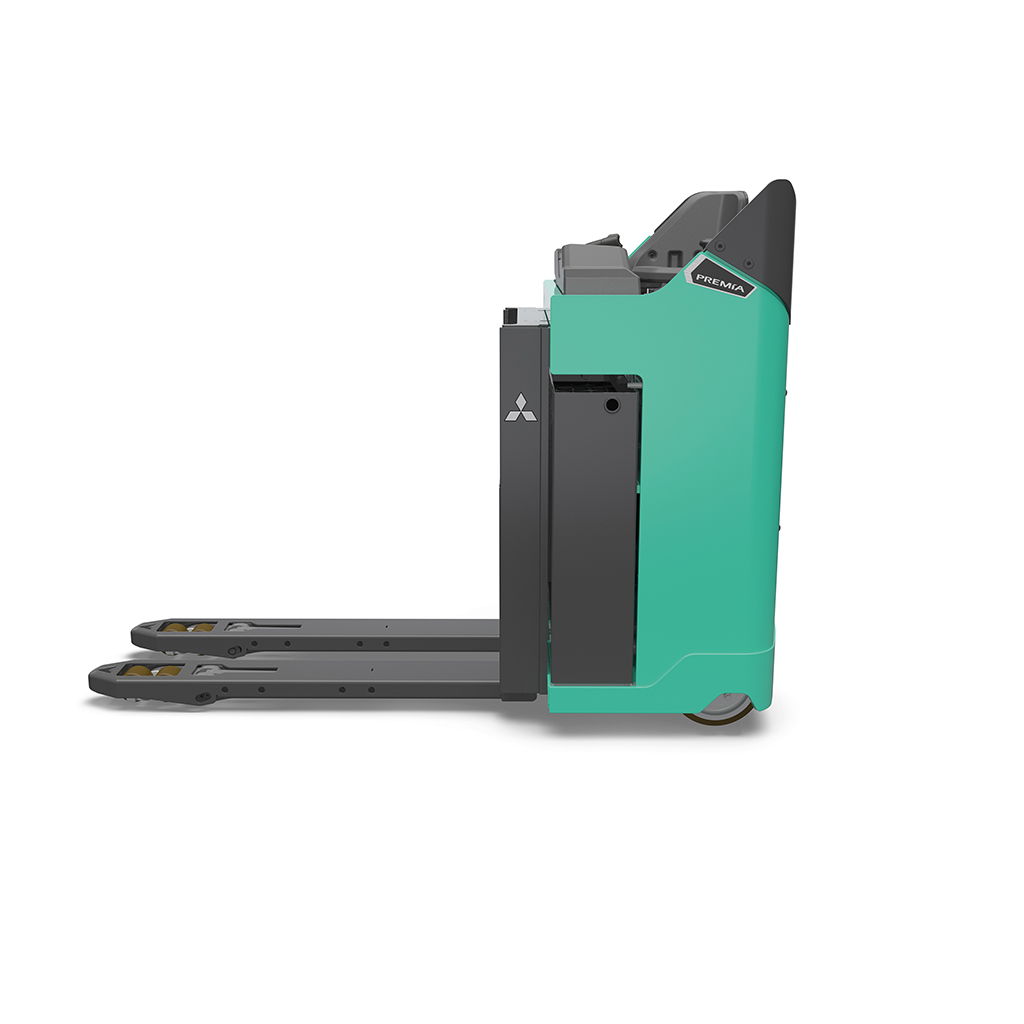

Engineered for optimum efficiency, with high acceleration and fast travel speeds, PREMiA EX offers operators consistently smooth, stable performance. And with straightforward servicing and legendary Mitsubishi Forklift Trucks reliability, PREMiA EX will keep downtime to a minimum.
| Model | Load Capacity |
|---|---|
| PBR20N2 | 2000 kg |
| PBR30N2 | 3000 kg |
The truck senses the angle of a turn and reduces speed early. This makes for much safer handling with maximum stability and accurate, positive cornering.

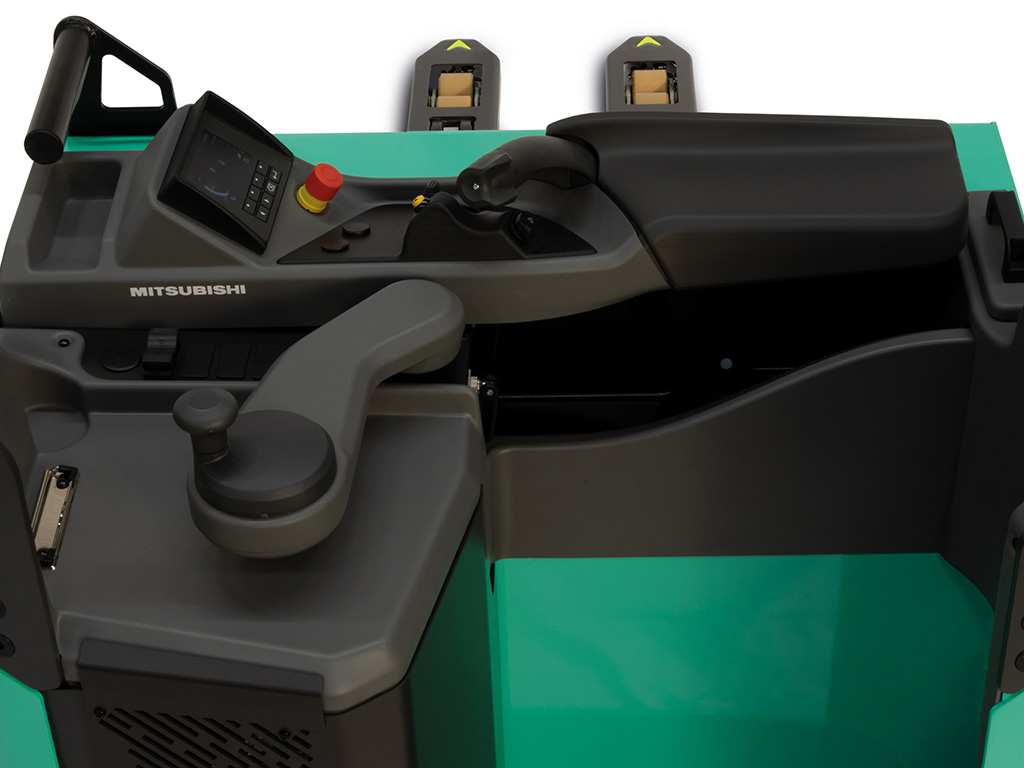

The steering wheel minimises the effort required to operate the truck as it supports a more relaxed driving position, ensuring the operator stays comfortable and in control throughout long shifts. It is height and angle adjustable to suit drivers of all sizes.
Allows smooth turning without the 'pause' of a 3-point turn. It not only saves time in each and every turn - which adds up over the length of a shift - but puts less force on the load. This makes for quicker, safer, and more stable operation.
A progressive steering ratio reduces the effort needed by the operator, making driving smooth and responsive. This reduces operator fatigue and improves steering precision, increasing driveability and reducing the risk of damage.

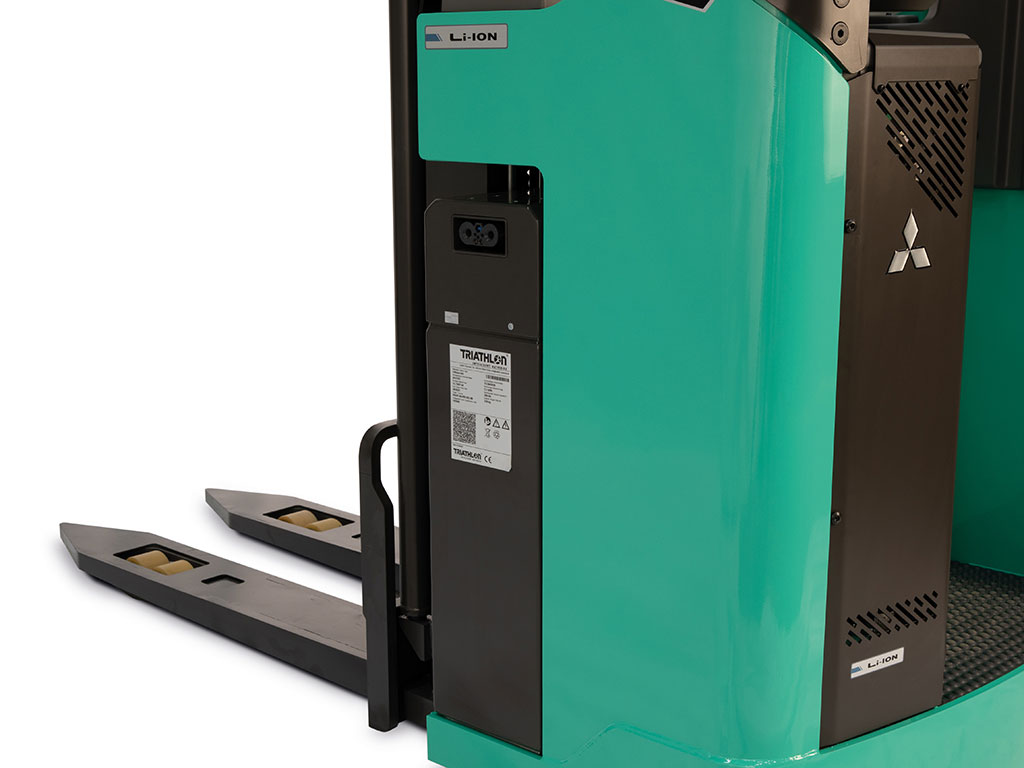

This option allows for quick charging, while minimising maintenance - avoiding the need for costly extra batteries and time-consuming changeovers.

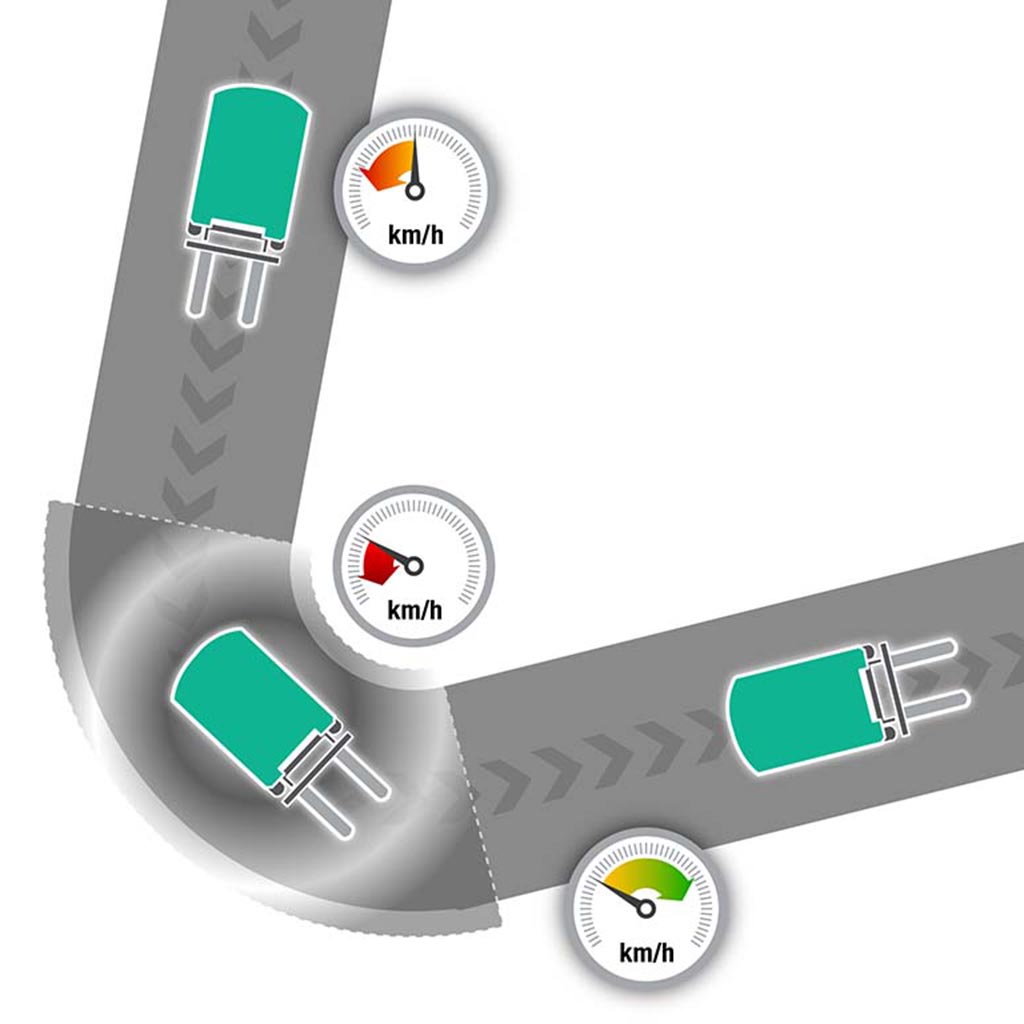

Intelligent Cornering System
The truck senses the angle of a turn and reduces speed early for maximum stability and accurate, positive cornering.
360-degree steering
The operator can keep the truck in constant motion - saving seconds on every turn. (Option)

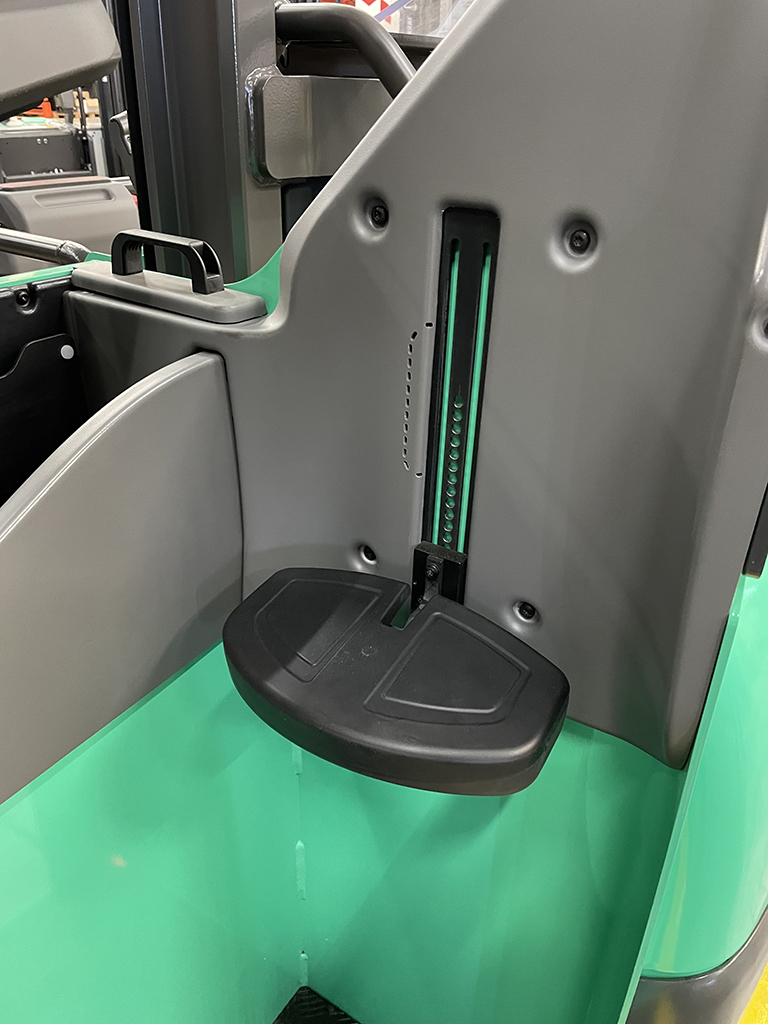

Optical Presence Sensor
This locks all movement of the truck and its mast if the operator is not present. Driver can lift foot slightly without brakes automatically engaging, reducing muscle stress.
Fully adjustable steering wheel
Ergonomically adjustable to reduce strain and lower risk of RSI.

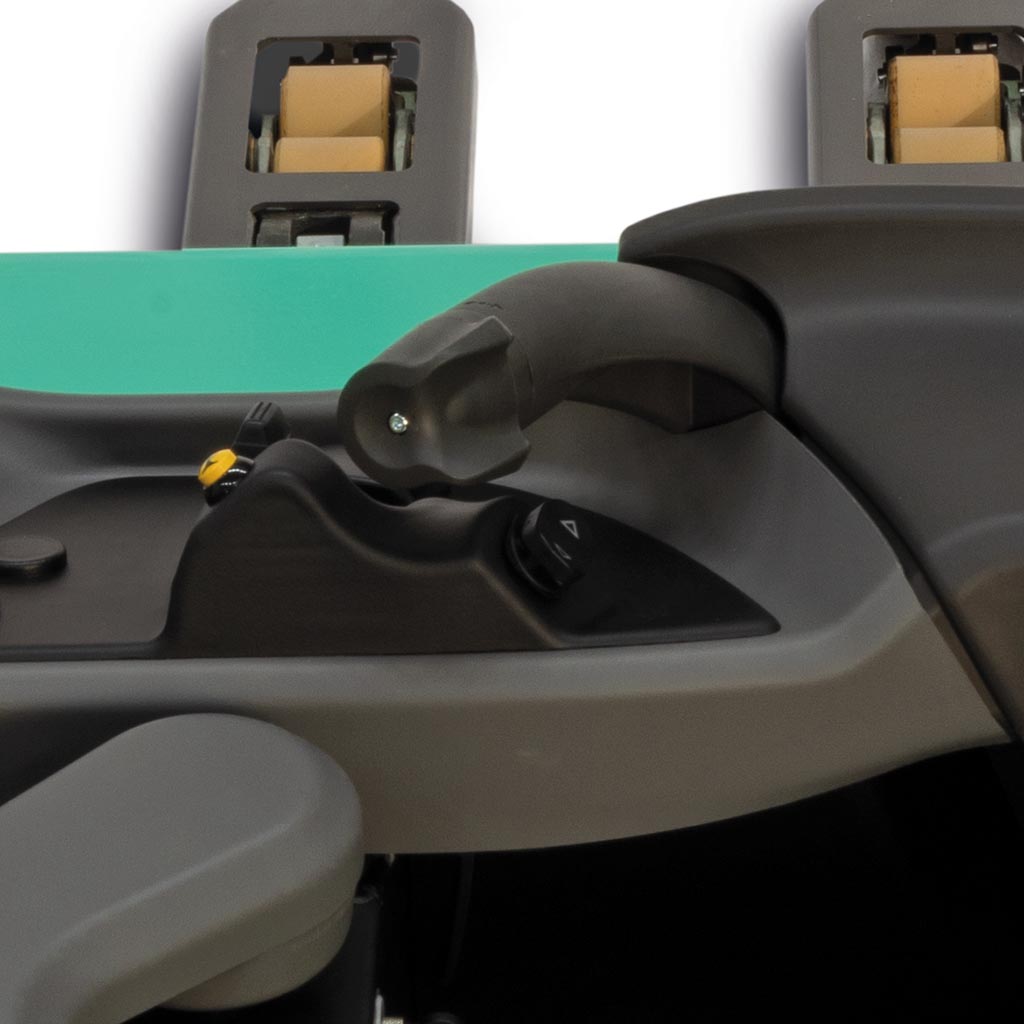

Ergo Forks Trailing Control
When working with forks trailing, an additional speed control allows an operator to stand in a more comfortable and ergonomic forward-facing position while travelling. (Option)

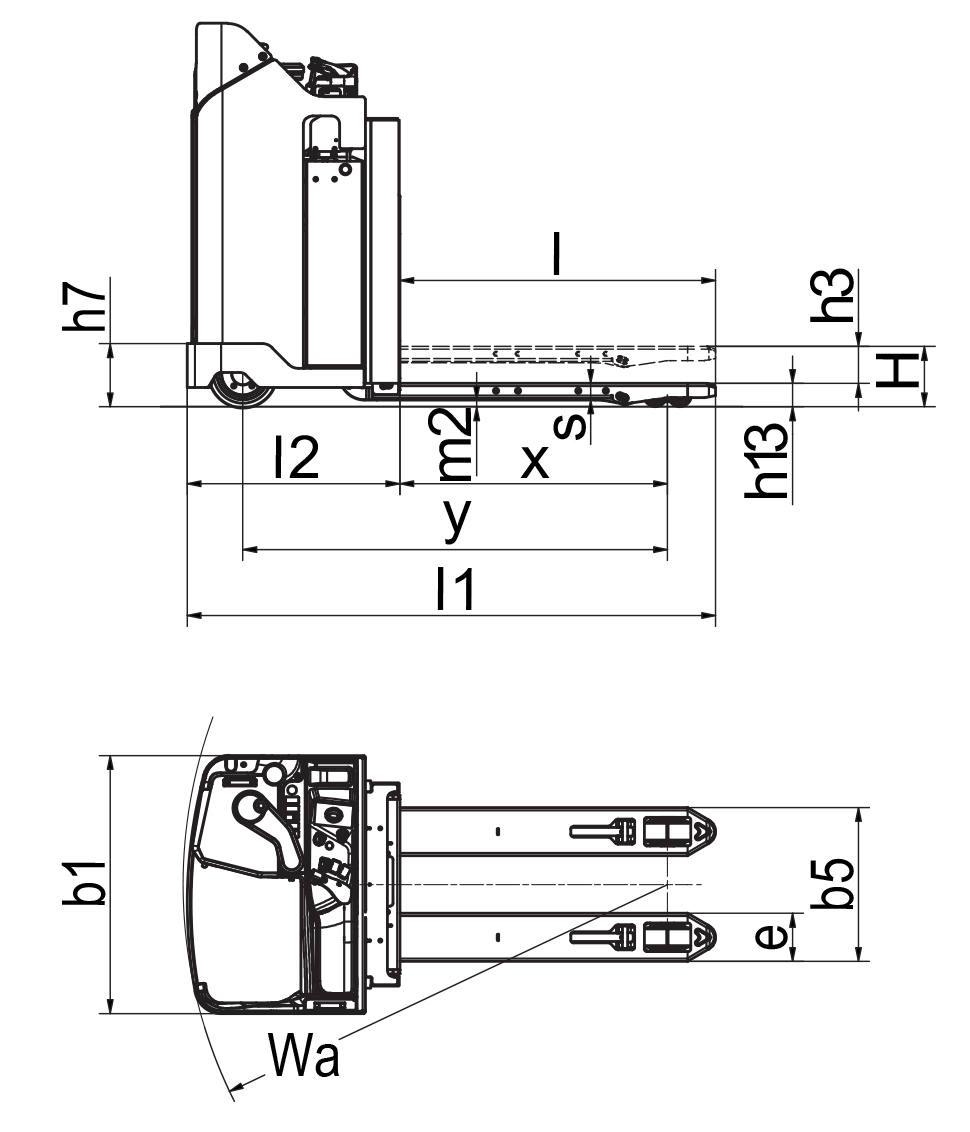

| Characteristics | |||||
| 1.2 | Manufacturer's model designation | PBR20N2 | PBR30N2 | ||
| 1.3 | Power source: (battery, diesel, LP gas, petrol) | Battery | Battery | ||
| 1.4 | Operator type: pedestrian, (operator)-standing, -seated | Stand-in | Stand-in | ||
| 1.5 | Load capacity | Q | kg | 2000 | 3000 |
| 1.6 | Load centre distance | c | mm | 600 | 600 |
| 1.8 | Load wheel axle to fork face (forks lowered) | x | mm | 975 | 975 |
| 1.9 | Wheelbase | y | mm | 15471) | 15471) |
| Weight | |||||
| 2.1b | Truck weight without load, with maximum battery weight | kg | 985 | 1095 | |
| 2.2 | Axle loadings with nominal load & maximum battery weight, drive/load side | kg | 1140 / 1845 | 1390 / 2705 | |
| 2.3 | Axle loadings without load & with maximum battery weight, drive/load side | kg | 770 / 215 | 825 / 270 | |
| Wheels, Drive Train | |||||
| 3.1 | Tyres: PT=Power Thane, Vul=Vulkollan, drive/load side | Vul / Vul | Vul / Vul | ||
| 3.2 | Tyre dimensions, drive side | 250 x 105 | 250 x 105 | ||
| 3.3 | Tyre dimensions, load side | 85 x 70 | 85 x 70 | ||
| 3.4 | Castor wheel dimensions (diameter x width) | 150 x 55 | 150 x 55 | ||
| 3.5 | Number of wheels, drive/load side (x=driven) | 1 x + 2 / 4 | 1 x + 2 / 4 | ||
| 3.6 | Track width (centre of tyres), drive side | b10 | mm | 662 | 662 |
| 3.7 | Track width (centre of tyres), load side | b11 | mm | 385 | 385 |
| Dimensions | |||||
| 4.4 | Lift height (see tables) | h3 | mm | 135 | 135 |
| 4.7 | Height to top of overhead guard | h6 | mm | 2310 opt | 2310 opt |
| 4.8 | Seat height | h7 | mm | 230 | 230 |
| 4.15 | Fork height, fully lowered | h13 | mm | 88 | 88 |
| 4.19 | Overall length | l1 | mm | 19231) | 19231) |
| 4.20 | Length to fork face (includes fork thickness) | l2 | mm | 7731) | 7731) |
| 4.21 | Overall width | b1/b2 | mm | 940 | 940 |
| 4.22 | Fork dimensions (thickness, width, length) | s,e,l | mm | 60 / 175 / 1150 | 60 / 175 / 1150 |
| 4.25 | Outside width over forks (minimum/maximum) | b5 | mm | 560 | 560 |
| 4.32 | Ground clearance at centre of wheelbase, (forks lowered) | m2 | mm | 25 | 25 |
| 4.33a | Working aisle width (Ast) with 1000 × 1200 mm pallets, load crosswise, platform up/down | Ast | mm | 23812) | 23812) |
| 4.33b | Working aisle width (Ast3) with 1000 × 1200 mm pallets, load crosswise, platform up/down | Ast3 | mm | 1997 | 1997 |
| 4.34a | Working aisle width (Ast) with 800 × 1200 mm pallets, load lengthwise, platform up/down | Ast | mm | 23973) | 23973) |
| 4.34b | Working aisle width (Ast3) with 800 × 1200 mm pallets, load lengthwise, platform up/down | Ast3 | mm | 2192 | 2192 |
| 4.35 | Turning circle radius | Wa | mm | 17054) | 17054) |
| Performance | |||||
| 5.1 | Travel speed, with/without load | km/h | 10/10 | 9/9 | |
| 5.2 | Lifting speed, with/without load | m/s | 0.07 / 0.09 | 0.06 / 0.10 | |
| 5.3 | Lowering speed, with/without load | m/s | 0.12 / 0.09 | 0.10 / 0.07 | |
| 5.7 | Gradeability, with/without load | % | 6.0/15.0 | 6.0/15.0 | |
| 5.8 | Maximum gradeability, with/without load | s | 14 / 28.4 | 11 / 28.4 | |
| 5.9 | Acceleration time (10 metres) with/without load | s | 7.0 / 6.0 | 7.5 / 6.0 | |
| 5.10 | Service brakes (mechanical /hydraulic /electric /pneumatic) | Electric | Electric | ||
| Electric Motors | |||||
| 6.1 | Drive motor capacity (60 min. short duty) | kW | 2.7 | 2.7 | |
| 6.2 | Lift motor output at 15% duty factor | kW | 2.2 (5%) | 2.2 (5%) | |
| 6.4 | Battery voltage/capacity at 5-hour discharge | V/Ah | 24 / 345 - 465 | 24 / 345 - 465 | |
| 6.5 | Battery weight | kg | 330-400 | 330-400 | |
| 6.6b | Energy consumption according to VDI 60 cycle | kWh/h | 0.449 | 0.567 | |
| Miscellaneous | |||||
| 8.1 | Type of drive control | AC | AC | ||
| 10.7a | Noise level, value at operator's ear (EN 12053) | dB(A) | 63.9 | 64.1 | |
| 10.7b | Level of noise at the ear level of the driver according to EN 12 053:2001 and EN ISO 4871 in work LpAZ | dB(A) | 68.3/64.9/47.4 | 68.3/65.9/47.4 |
